405000x8D Murray - Lawn Tractor (2004)

Model: 405000x8D

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

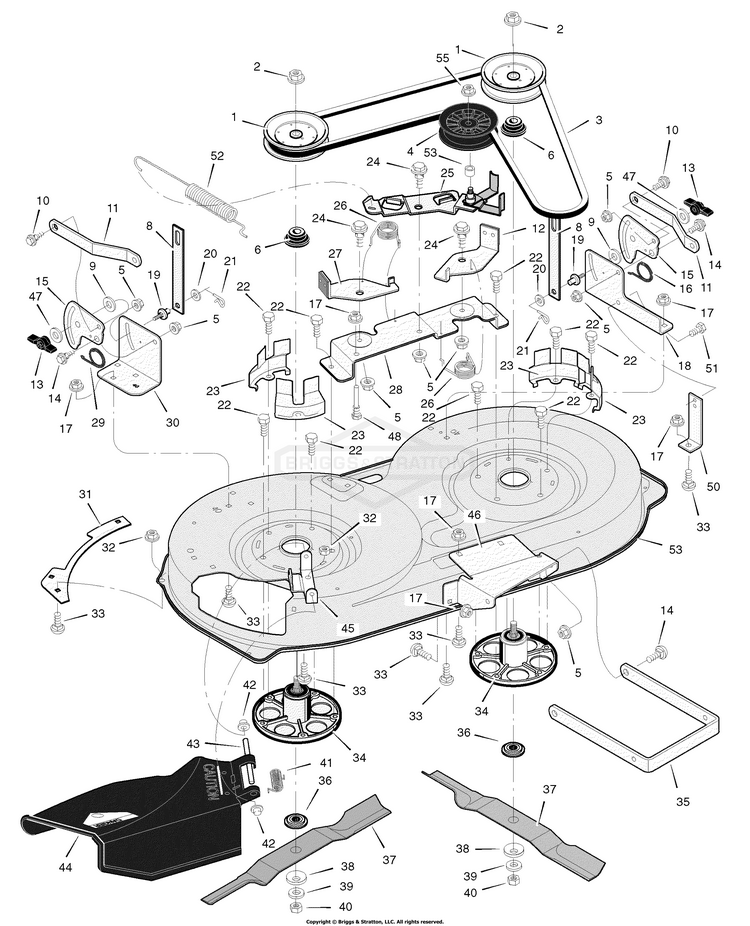

Mower Housing

...
...
1
Pulley, Jackshaft BS-92851
...
2
Nut, Hex BS-15X140
...
3
Belt, Mower Drive BS-037X62
...
4
Pulley, Idler BS-690387
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Spacer, Pulley BS-1001197MA
...
8
Link, Lift BS-690212E701
...
9
SCREW BS-690326
...
10
BOLT, Shoulder 3/8-16 x 1 BS-009X52MA
...
11
Bracket, Suspension BS-094055E701
...
12
Pad Assembly, Left Brake BS-094049E701
...
13
Knob BS-94068
...
14
BOLT-SHD.38-16X.499D BS-009X51MA
...
15
Plate, Suspension BS-094128E700
...
16
SPRING, Left Torsion BS-166X43MA
...
17
Nut, Flange BS-015X79
...
18
Bracket, Suspension BS-094143E700
...
19
Pin, Hanger BS-95194
...
20
WASHER, Flat, 13/16 BS-017X91MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
SCREW-HEX WSHR HD TAP BS-2828635SM
...
23
BELT GUIDE BS-7300859BMYP
...
24
Bolt, Shoulder BS-009X39
...
25
Arm, Idler BS-690408E701
...
26
Spring BS-166X41
...
27
Pad Assembly, Right Brake BS-094047E701
...
28
Bracket Assembly, Brake BS-094145E701
...
29
SPRING, Right Torsion BS-166X42MA
...
30
Bracket, Suspension BS-094142E700
...
31
Plate BS-091770E700
...
32
NUT, HEX FLNG,5/16-18 BS-704067
...
33
BOLT BS-703159
...
34
JACKSHAFT HSNG ASSY (Includes Ref. No. 6) BS-1001200MA
...
35
Bracket, Suspension BS-690539E701
...
36
Adapter, Blade BS-690411
...
37
Blade BS-095103E701MA
...
38
Washer, Belleville BS-17X166MA
...
39
Washer BS-17X165MA
...
40
Nut, Hex BS-15X100MA
...
41
SPRING, Torsion BS-0166X4MA
...
42
PUSHNUT, 3/8 BS-703948
...
43
ROD, Deflector BS-094957ZMA
...
44
ASSEMBLY, Deflector BS-094707MA
...
45
BRACKET - HINGE BS-094956E701MA
...
46
Bracket, Front Hanger BS-094144E700
...
47
Washer BS-017X45 Z
...
48
Guide, Belt BS-94781
...
50
Bracket, Support BS-094681E700
...
51
CAPSCREW, 5/16-18 BS-26X249MA
...
52
Spring, Extension BS-165X119
...
53
SCREW BS-690369
...
54
Housing, Blade * BS-094141E701MA
...
55
NUT, CNTR LCK, 3/8-16 BS-703893
