40383x58B Murray - Lawn Tractor (2000)

Model: 40383x58B

Back To Assemblies

Save Part Not Listed?
product name

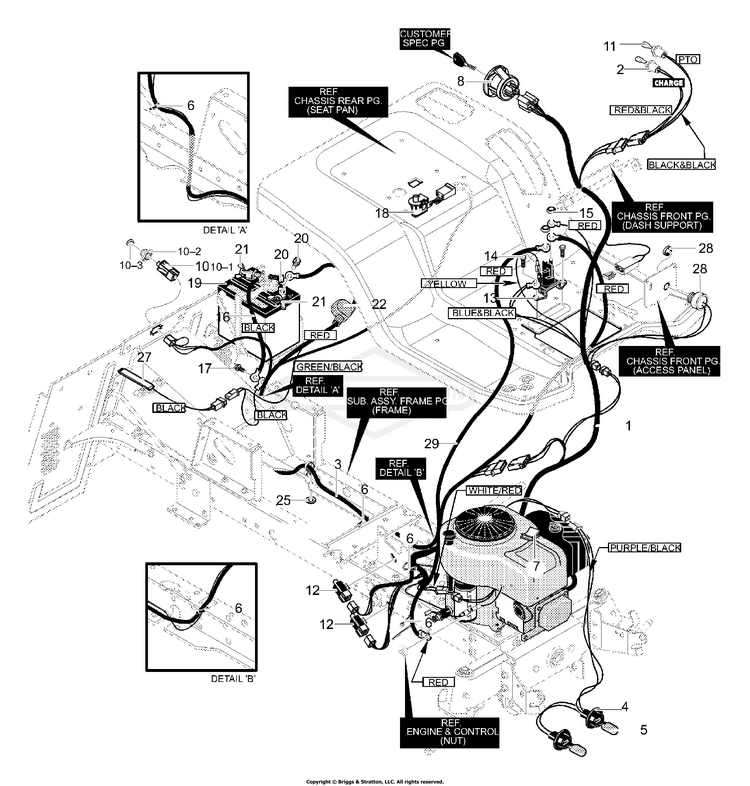

Electrical Assembly

...
...
1
FTG, CHEM INJ BS-95378GS
...
2
Indicator Harness BS-690611
...
3
Rear Harness BS-95381
...
4
Wire Harness * BS-94103
...
5
MANUAL-OPERATOR BS-52572GS
...
6
Cable Tie BS-57444
...
7
Wire Clip, Adhesive BS-055939MA
...
8
Switch, Ignition BS-094762
...
10
Assy, Switch Double Pole Delta BS-690106MA
...
10-1
Switch, Double BS-320082MA
...
10-2
Boot, Switch BS-690074MA
...
10-3
Switch Cap BS-690075MA
...
11
Bulb, Indicator BS-57769MA
...
12
Switch, Limit BS-094136MA
...
13
Solenoid BS-094613
...
14
Screw 1/4x.50 BS-711619
...
15
Nut, 1/4-20 BS-711632
...
16
Ground Wire BS-95420
...
17
Screw, 1/4x.50 BS-711619
...
18
SWITCH, SEAT BS-7023354YP
...
19
Battery 5 Plate BS-092739
...
20
PIN, HAIR BS-711682
...
21
Wing Nut BS-711636
...
22
Battery Boot BS-335417
...
25
Flatwasher BS-711666
...
27
Tape Switch BS-95330MA
...
28
Buzzer, For Bag Full BS-95391
...
29
Wire, Lead Solenoid to Starter BS-711579
...
--
15 Amp Fuse BS-302031MA
