40383x58B Murray - Lawn Tractor (2000)

Model: 40383x58B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

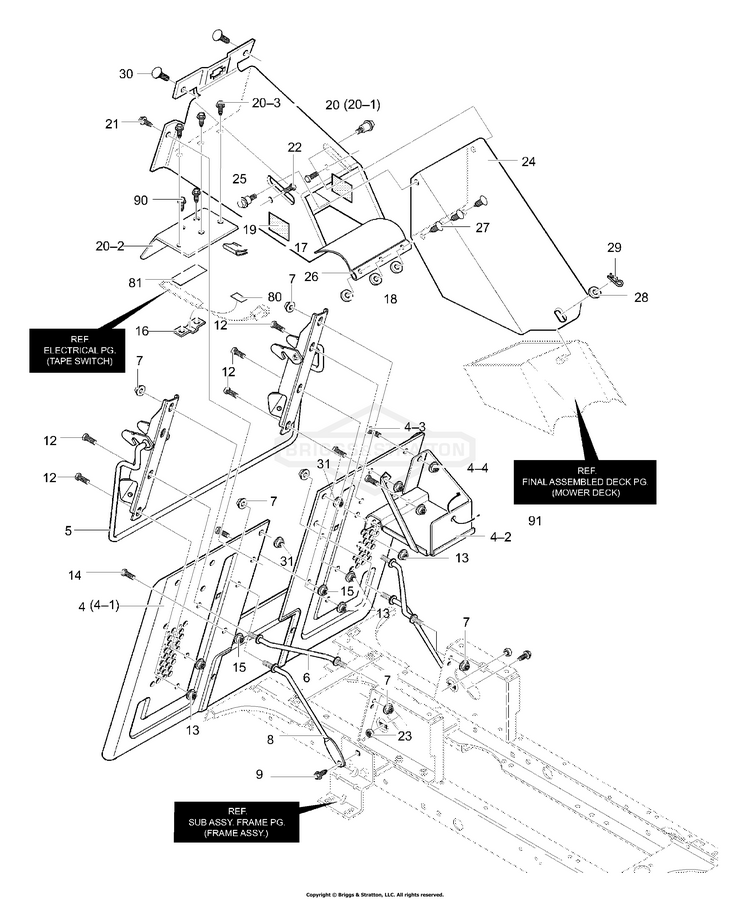

Rear Chassis Assembly (part 1)

...
...
4
Assy., Back Plate/Battery BS-343678-821
...
4-1
CLAMP, Hose BS-791850
...
4-2
Battery Tray Assembly BS-94563
...
4-3
Screw, 5/16-18 x 0.50 BS-180073MA
...
4-4
Nut, 5/16-18 Hexwdfllk Whiz BS-45174
...
5
Weldment - Latch Lever BS-95359-821
...
6
Rod, Brace BS-690097
...
7
Nut, 3/8-16 Hwdfl Whiz-lock BS-711906
...
8
SCREW BS-691340
...
9
Screw, 5/16-18 x .75 BS-711606MA
...
12
SCREW, 5/16-18 BS-703354
...
13
Nut, 5/16-18 Hexwdfllk Whiz BS-710026
...
14
Screw, 5/16-18 x .75 BS-711606MA
...
15
Nut, 5/16-18 Hexwdfllk Whiz BS-710026
...
16
Bracket, Flex Switch Mounting BS-690245
...
17
Wire Clip, Adhesive BS-055939MA
...
18
Flatwasher BS-711666
...
19
Pad, Adhesive BS-318197
...
20
Asm., T/A Shield & Upper Chute BS-690102-821
...
20-1
Chute Weld Asm. Upper BS-94350
...
20-2
GUIDE, PSTN, UNLDR BS-95367GS
...
20-3
SCREW.25-20 S-T BS-26X263MA
...
21
Screw, 5/16-18 x .75 BS-711606MA
...
22
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
23
Nut, 5/16-18 BS-710026
...
24
Middle Chute Assembly BS-94296-821
...
25
Shoulder Bolt BS-710440
...
26
Flap, Chute BS-94264MA
...
27
Fastener, Ratchet BS-309235MA
...
28
Flatwasher BS-711617
...
29
PIN, 3/32 X 1.6 BS-703300
...
30
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
31
Nut, 5/16-18 BS-710026
...
80
Tape, Double Sided Foam 3/4" BS-712009
...
81
Tape, Double Sided Foam 3/4" BS-712009
...
90
SCREW.25-20 S-T BS-26X263MA
...
91
Cable Tie BS-57444
