40382x58B Murray - Lawn Tractor (2000)

Model: 40382x58B

Back To Assemblies

Save Part Not Listed?
product name

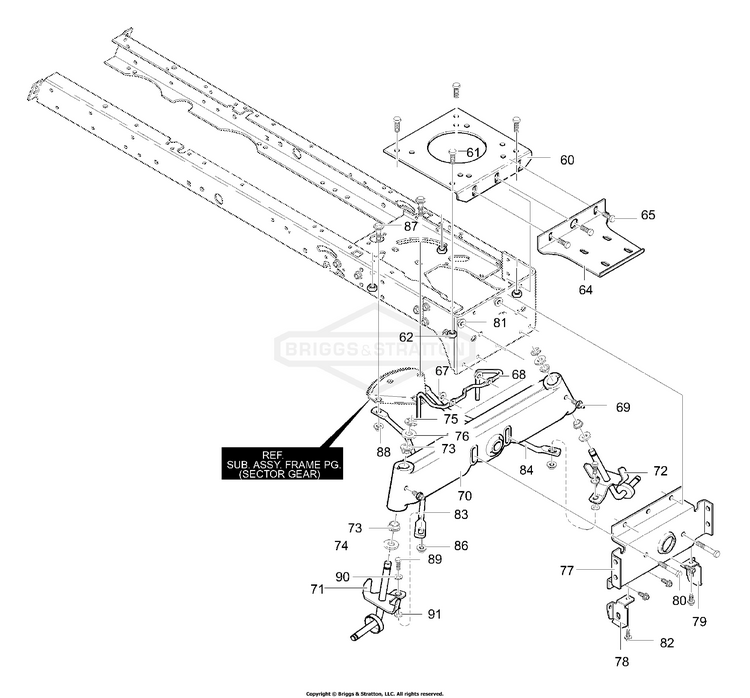

Frame Assembly (part 2)

...
...
60
Engine Plate BS-94006
...
61
Screw, .312-18x.75 BS-26X249MA
...
62
NUT, HEX FLNG,5/16-18 BS-704067
...
64
Bracket, Muffler Mount BS-094306
...
65
Screw, .312-18x.75 BS-26X249MA
...
67
Nut, 5/16-18 BS-45174
...
68
Guide-Stack Pulley Belt BS-94310
...
69
Zerk, Grease BS-706
...
70
Axle, Cast Machined BS-95405
...
71
Spindle, Long RH BS-95182
...
72
Spindle, Long LH BS-95183
...
73
Bearing, Spindle BS-092527MA
...
74
WASHER.76-1.2 13G FL BS-17X113MA
...
75
RING, E .750D .050T BS-0011X3MA
...
76
Washer, Flat BS-17X195MA
...
77
Hanger, Axle BS-94007
...
78
Hanger, Deck RH BS-690199
...
79
Hanger, Deck LH BS-690198
...
80
Screw, 5/16-18 x 3.00 BS-180113MA
...
81
NUT, HEX FLNG,5/16-18 BS-704067
...
82
Screw, .312-18x.75 BS-26X249MA
...
83
Drag Link, RH BS-95328
...
84
Drag Link, LH BS-95329
...
86
NUT, CNTR LCK, 3/8-16 BS-703893
...
87
Shoulder Bolt BS-009X57MA
...
88
NUT, CNTR LCK, 3/8-16 BS-703893
...
89
CAPSCREW,3/8-16X1.5 BS-703406
...
90
WASHER, FLAT BS-710083MA
...
91
WASHER, FLAT .406X.81 BS-71072MA
