40382x58 Murray - Lawn Tractor (1999)

Model: 40382x58

Back To Assemblies

Save Part Not Listed?
product name

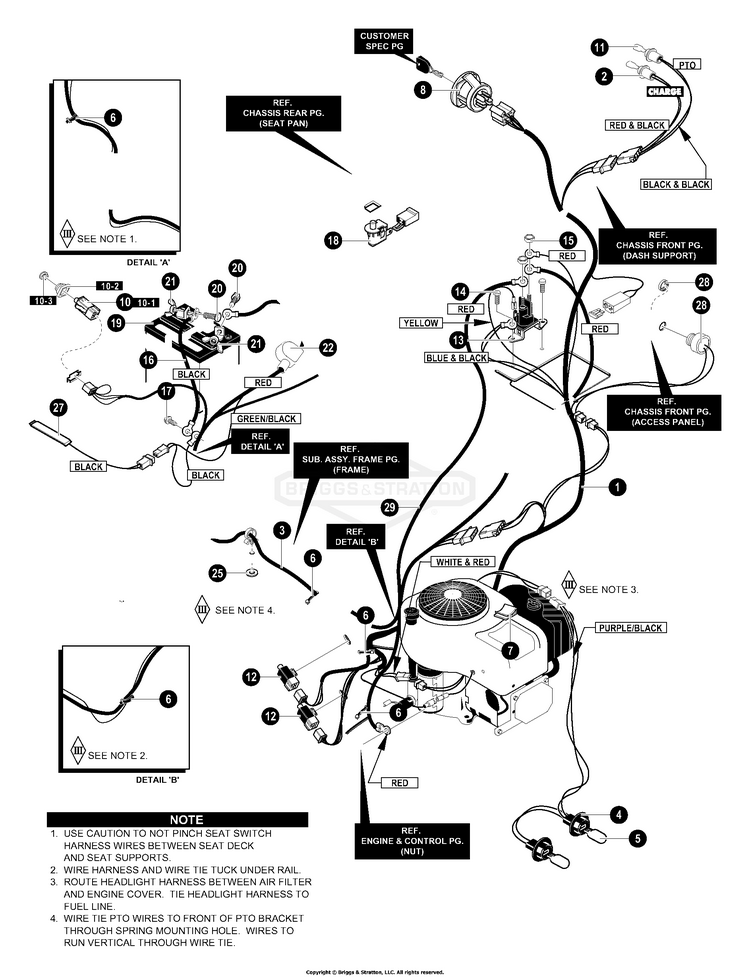

Electrical Assembly

...
...
1
FTG, CHEM INJ BS-95378GS
...
2
INDICATOR HARNESS BS-690054
...
3
REAR HARNESS BS-95381
...
4
WIRE HARNESS FOR HEADLIGHTS BS-94103
...
5
MANUAL-OPERATOR BS-52572GS
...
6
TIE, CABLE BLACK NYLON 5.62L BS-57444
...
7
WIRE CLIP, ADHESIVE BS-055939MA
...
8
SWITCH, IGNITION BS-094762
...
10
ASSY, SWITCH DOUBLE POLE DELTA BS-690106MA
...
10-1
SWITCH, DOUBLE BS-320082MA
...
10-2
BOOT, SWITCH BS-690074MA
...
10-3
SWITCH CAP BS-690075MA
...
11
BULB, INDICATOR BS-57769MA
...
12
SWITCH LIMIT BS-094136MA
...
13
SOLENOID BS-094613
...
14
SCREW, 1/4X.50 BS-711619
...
15
NUT, 1/4-20 HEXNYL BS-711632
...
16
WIRE, GROUND BS-95420
...
17
SCREW,1/4X.50 BS-711619
...
18
SWITCH, SEAT BS-7023354YP
...
19
BATTERY 5 PLATE MAINT FREE BS-092739
...
20
PIN, HAIR BS-711682
...
21
NUT, WING 1/4-20 BS-711636
...
22
BOOT, BATTERY BS-335417
...
25
WASHER, FLAT .250X56X.0478 BS-711666
...
27
TAPE SWITCH BS-95330MA
...
28
BUZZER, FOR BAG FULL BS-95391
...
29
WIRE, LEAD SOLENOID TO STARTER BS-711579
...
--
15 AMP FUSE BS-302031MA
