40379x68A Murray - Lawn Tractor (2001)

Model: 40379x68A

Back To Assemblies

Save Part Not Listed?
product name

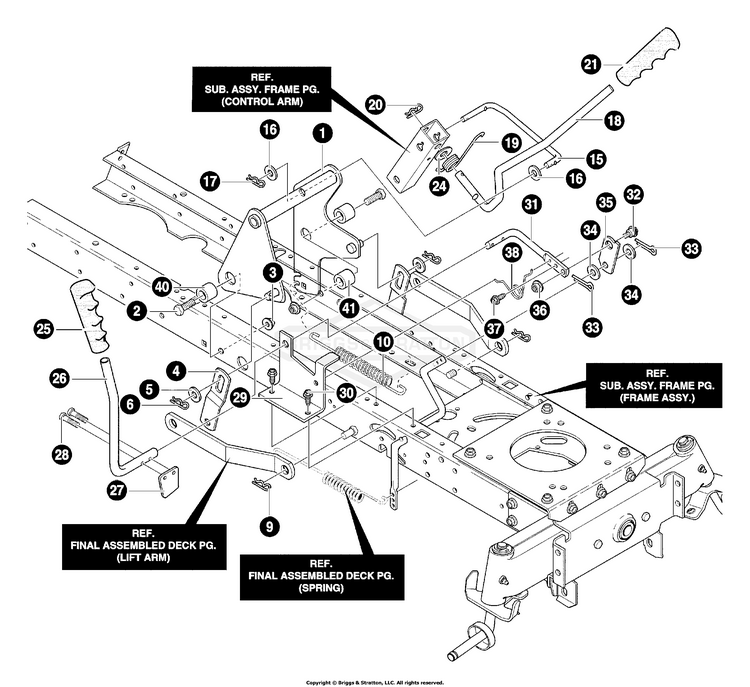

Mower Suspension Assembly

...
...
1
ASM., LIFT ARM BS-95233-853
...
2
SCREW, 1/2-13X1.50 BS-711917MA
...
3
NUT, 1/2-13 LOCK BS-711918
...
4
BRACKET, LIFT LINK BS-94262-853
...
5
WASHER, FLAT BS-711617
...
6
PIN, HAIR BS-711676
...
9
PIN, HAIR BS-711676
...
10
SPRING, EXTENSION BS-710235
...
15
LINK-LIFT HANDLE BS-711981
...
16
WASHER, FLAT BS-711617
...
17
PIN, HAIR BS-711676
...
18
ZINC HANDLE, LIFT BS-690532
...
19
TORSION SPRING BS-710111
...
20
PIN, HAIR BS-711676
...
21
GRIP .50 DELUXE- BLAC BS-094497MA
...
24
WASHER, FLAT BS-711616
...
25
GRIP BS-1753233YP
...
26
PTO HANDLE BS-712033
...
27
PADDLE-SWITCH BS-094022ZMA
...
28
SCREW, THD FORM BS-711621MA
...
29
BRACKET, PTO BS-94018-853
...
30
SCREW, 5/16-18X.5 BS-703985
...
31
ZINC LEVER, PTO BS-95283MA
...
32
BOLT, .50X.75 HHSH 3/8-16 BS-711613MA
...
33
PIN, HAIR BS-711659
...
34
WASHER, FLAT BS-711615MA
...
35
ZINC LINK PTO BS-95282
...
36
NUT, 3/8-16 HWDFLLK MACK BS-711622
...
37
SCREW, 5/16-18 x 0.75 BS-711606MA
...
38
TORSION SPRING BS-710141
...
40
SPACER BS-94309
...
41
SPACER BS-56150MA
