40379x68A Murray - Lawn Tractor (2001)

Model: 40379x68A

Back To Assemblies

Save Part Not Listed?
product name

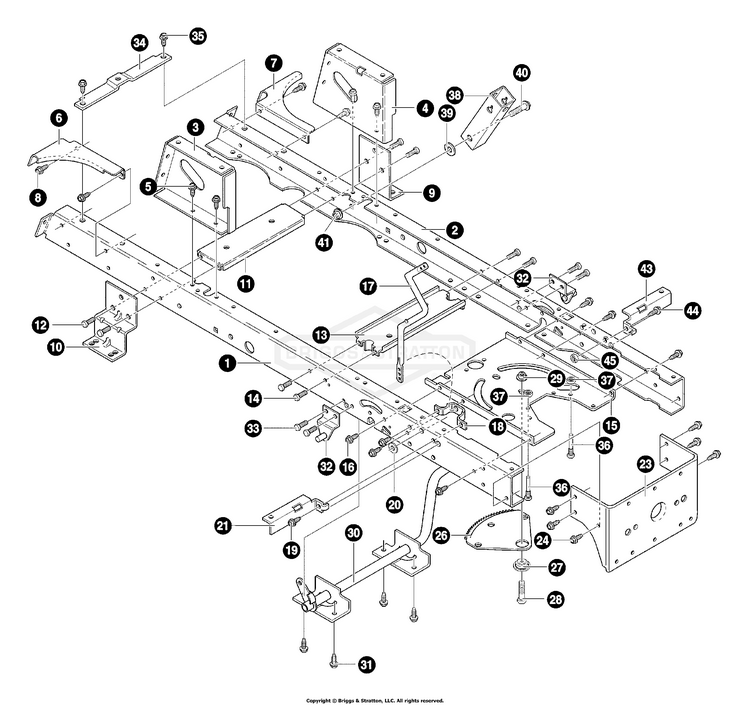

Frame Assembly

...
...
1
FRAME, RAIL RH BS-94564
...
2
SCREW BS-592244
...
3
SUPPORT, SEAT RH BS-94634
...
4
SUPPORT, SEAT LH BS-94633
...
5
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
6
BRACE, BACKPLATE RH BS-94561
...
7
BRACE, BACKPLATE LH BS-94562
...
8
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
9
BRACKET, TRANSAXLE BS-94008
...
10
BRACKET, T/A RH-VST LH-MS BS-94234
...
11
ASM., IDLER MOUNT, REAR BS-94236
...
12
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
13
ASM. IDLER MOUNT FRONT BS-94237
...
14
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
15
PLATE, STEERING MOUNTING BS-690551
...
16
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
17
CRANK, PTO DRILLED BS-690394
...
18
BRACKET, BELL CRANK BS-94005
...
19
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
20
WASHER, FLAT .469X.92X.065 BS-120395
...
21
BRACKET, SEAT DECK LH BS-690035
...
23
BRACKET HANGER REAR BS-94013
...
24
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
26
GEAR, SECTOR BS-094121MA
...
27
BEARING, SECTOR GEAR BS-094123MA
...
28
SCREW 5/16-18X1.00 BS-710312
...
29
NUT, 5/16-18 HEXKEPS BS-710105
...
30
ASM., CLUTCH/BRAKE PEDAL STD. BS-94241
...
31
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
32
BRACKET, SUSPENSION ASM. BS-94285
...
33
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
34
BRACE, RAIL BS-94566
...
35
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
36
GUIDE SCREW - ZINC BS-093349MA
...
37
NUT, 5/16-18 HEXWDFLLK WHIZ BS-710204
...
38
BRACKET, PIVOT BS-094015
...
39
WASHER, FLAT .390X1.25X.119 BS-000845
...
40
BOLT, .562X1.563 HHSH 3/8-16 BS-710000
...
41
NUT, 3/8-16 HWDFLLK MACK BS-710140
...
43
BRACKET, SEAT DECK LH BS-690036
...
44
SCREW, 5/16-18 x .75 HHWATAP BS-710079
...
45
NUT, 5/16-18 HEXWDFLLK WHIZ BS-710204
