40379x68A Murray - Lawn Tractor (2001)

Model: 40379x68A

Back To Assemblies

Save Part Not Listed?
product name

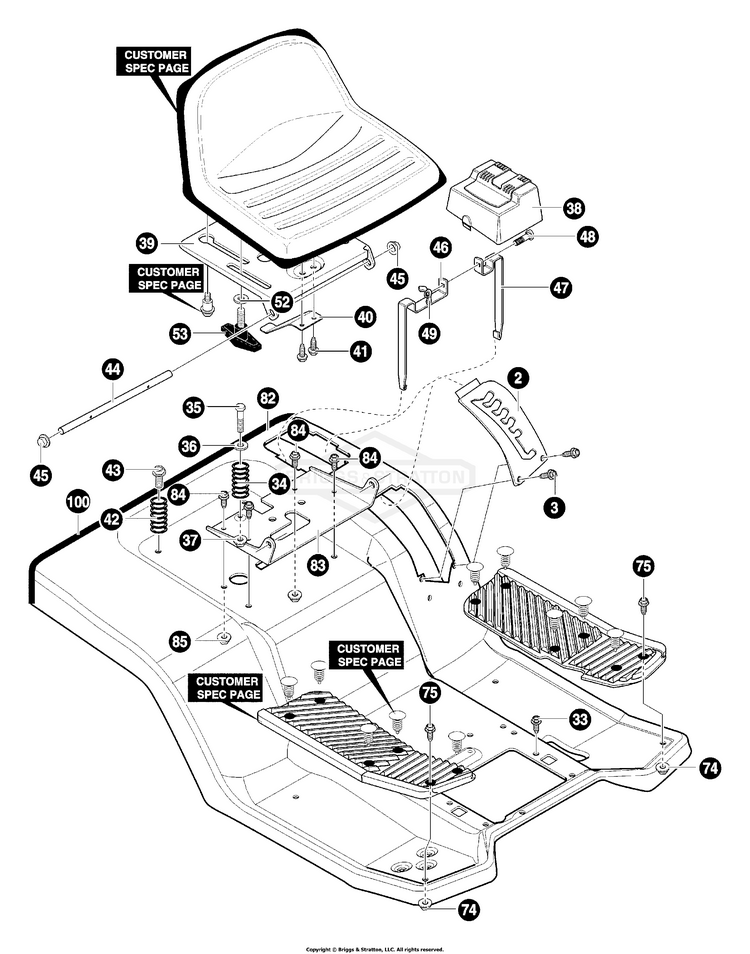

Seat And Seat Pan

...
...
2
PLATE-LIFT DETENT 5 POS, REBA BS-95190-853
...
3
SCREW, #12X.50 BS-711741
...
34
SPRING, COMP. 4.57LGX1.17 BS-710136-853
...
35
BOLT, SHOULD 1/4-20 BS-711610
...
36
ZINC WASHER CUP BS-95293
...
37
NUT, CTRLK 1/4-20 BS-302635
...
38
COVER, BATTERY BS-94200MA
...
39
SUPPORT, SEAT BS-94154-884
...
40
SPRING - LEAF BS-094057MA
...
41
SCREW, 1/4-20X.50 BS-711592
...
42
SPRING, COMP 2.43LG BS-710109-853
...
43
SCREW, 5/16-18 x 0.75 BS-711606MA
...
44
ZINC HINGE SEAT PIVOT BS-95294
...
45
NUT, PUSH CAP .375 BS-711627MA
...
46
BATTERY BRACKET L.H. BS-95393-853
...
47
BATTERY BRACKET R.H. BS-95394-853
...
48
PIN, HAIR BS-711682
...
49
NUT, WING 1/4-20 BS-711636
...
52
WASHER, FLAT .344X.62X.06 BS-711644MA
...
53
BOLT, WING 5/160-18X.50 BS-711747MA
...
74
NUT, 5/16-18 HEX BS-710026
...
75
BOLT, 5/16-18X.75 CARR. BS-711891
...
82
SEAT DECK PEDAL HYDRO BS-94311-884
...
83
BRACKET, SEAT PIVOT BS-94153-884
...
84
SCREW, 5/16-18 x 0.75 BS-711606MA
...
85
NUT, 5/16-18 HWDFLLK BS-711634MA
...
100
TRIM, STRIP BS-055021
