40379x68A Murray - Lawn Tractor (2001)

Model: 40379x68A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

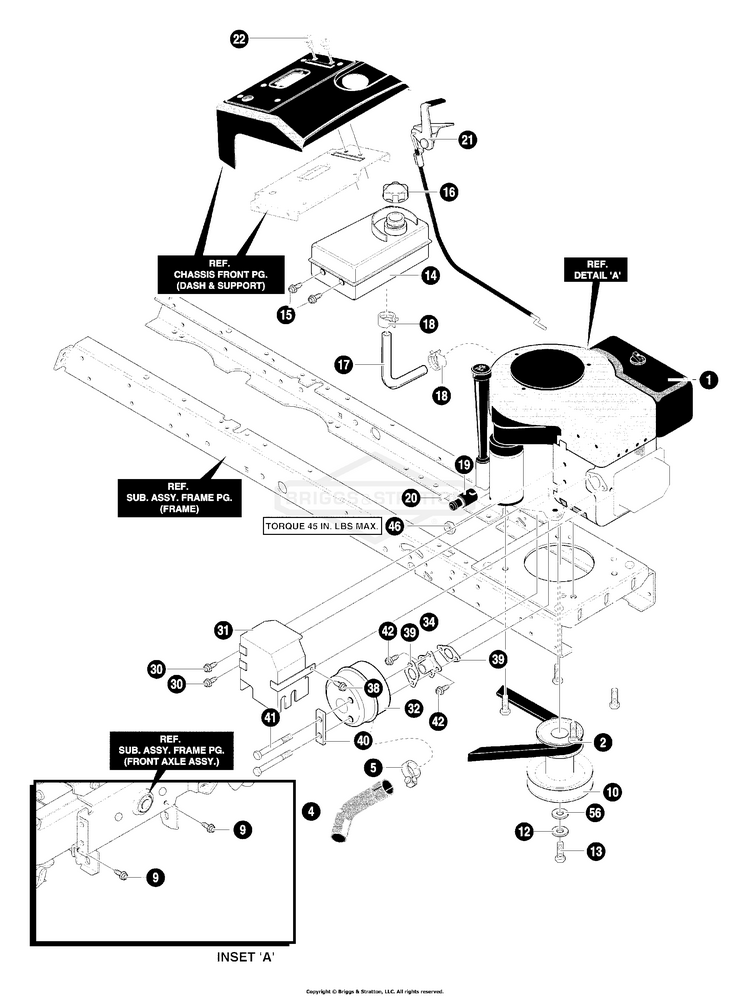

Engine And Control Assembly (part 1)

...
...
2
SCREW-HEX WSHR HD TAP BS-2828635SM
...
4
PIPE, EXHAUST BS-092855
...
5
CLAMP ASSEMBLY BS-092558MA
...
9
SCREW BS-711606MA
...
10
STACK PULLEY ASSY. BS-690456MA
...
12
WASHER BS-120383
...
13
SCREW BS-01X169
...
14
FUEL TANK BS-094086
...
15
SCREW BS-711681
...
16
FUEL CAP BS-092317MA
...
17
TUBING, GAS BS-50118
...
18
CLAMP, FUEL LINE BS-336890
...
19
OIL DRAIN VALVE ASSEMBLY BS-325547MA
...
20
CAP, OIL DRAIN VALVE ASSY BS-327422
...
21
THROTTLE CONTROL BS-94361
...
22
SCREW BS-711637
...
30
SCREW BS-712099
...
31
HEAT SHIELD ASSY. BS-094324
...
31-1
SHIELD HEAT BS-95037
...
31-2
SPINDLE PULLEY, 52" BS-5046763
...
31-3
BRACKET, HEAT SHIELD RT BS-92554
...
31-4
BRACKET, HEAT SHIELD LH BS-92555
...
31-5
PLATE, HEAT SHIELD BS-92552
...
32
MUFFLER, ROUND BS-095206
...
34
ADAPTER, Muffler BS-796002
...
38
SCREW.25-20 S-T BS-26X263MA
...
39
GASKET, Exhaust BS-692236
...
40
LOCK-SCREW 223016 BS-092378MA
...
41
BOLT, 5/15-18X3.58 BS-712100MA
...
42
SCREW, 5/16-18 x 0.625 BS-06X103MA
...
46
NUT, 1/4-20 BS-711601
...
56
WASHER, FLAT BS-711668
