40378x11B Murray - Lawn Tractor (2000)

Model: 40378x11B

Back To Assemblies

Save Part Not Listed?
product name

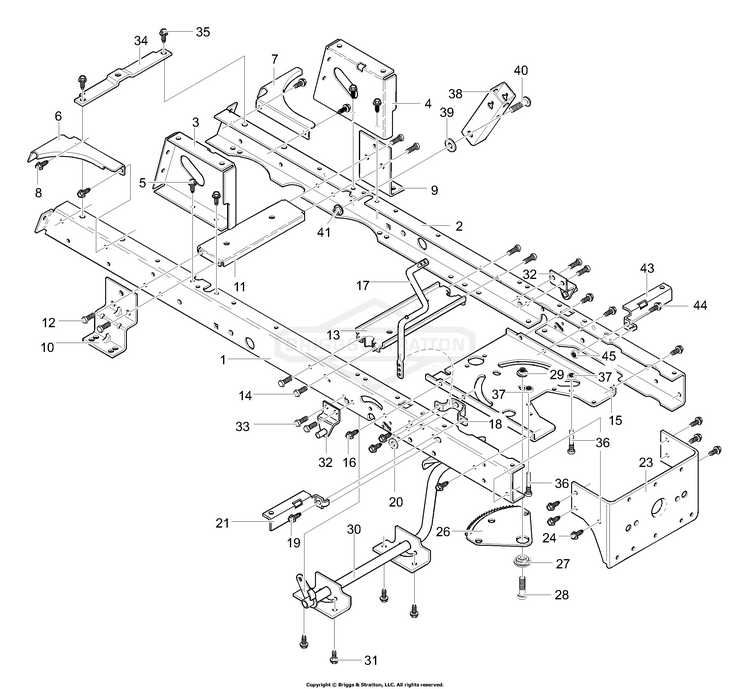

Frame Assembly (part 1)

...
...
1
FRAME, Rail RH BS-MU94564
...
2
FRAME, Rail LH BS-MU94565
...
3
SUPPORT, Seat RH BS-MU94634
...
4
SUPPORT, Seat LH BS-MU94633
...
5
SCREW, .312-18x.75 BS-MU26X249
...
6
BRACE, Back Plate RH BS-MU94561
...
7
BRACE, Back Plate LH BS-MU94562
...
8
SCREW, 5/16-18 x 0.75 BS-MU26X249
...
9
BRACKET, Transaxle BS-MU94008
...
10
BRACKET, TA RH-VST LH-MS BS-MU94234
...
11
Asm. Idler Mount Rear BS-MU94236
...
12
SCREW, .312-18x.75 BS-MU26X249
...
13
ASSEMBLY, Idler Mount, Front BS-MU94237
...
14
SCREW, .312-18x.75 BS-MU26X249
...
15
Plate, Steering BS-MU1001024
...
16
SCREW, .312-18x.75 BS-MU26X249
...
17
Crank, PTO BS-MU690394
...
18
BRACKET, Bell Crank BS-MU94005
...
19
SCREW, .312-18x.75 BS-MU26X249
...
20
WASHER, Flat BS-MU120395
...
21
BRACKET, Seat Deck RH BS-MU690035
...
23
BRACKET, Hanger Rear BS-MU94013
...
24
SCREW, .312-18x.75 BS-MU26X249
...
26
Gear, Sector BS-MU94121
...
27
BEARING, Sector Gear BS-MU94123
...
28
SCREW, 5/16-18 x 1.00 BS-MU001X84
...
29
NUT, 5/16-18 BS-MU15X113
...
30
Clutch/Brake Pedal BS-MU690033
...
31
SCREW, .312-18x.75 BS-MU26X249
...
32
BRACKET, Suspension Asm. BS-MU94285
...
33
SCREW, .312-18x.75 BS-MU26X249
...
34
BRACE, Rail BS-MU94566
...
35
SCREW, .312-18x.75 BS-MU26X249
...
36
Zinc Screw Guide BS-MU93349
...
37
NUT, 5/16-18 BS-MU015X79
...
38
BRACKET, Pivot BS-MU94015
...
39
WASHER, Flat BS-MU845
...
40
BOLT, Shoulder 3/8-16 BS-MU009X53
...
41
NUT, 3/8-16 BS-MU015X84
...
43
BRACKET, Seat Deck LH BS-MU690036
...
44
SCREW, .312-18x.75 BS-MU26X249
...
45
NUT, 5/16-18 BS-MU015X79
