40378x11B Murray - Lawn Tractor (2000)

Model: 40378x11B

Back To Assemblies

Save Part Not Listed?
product name

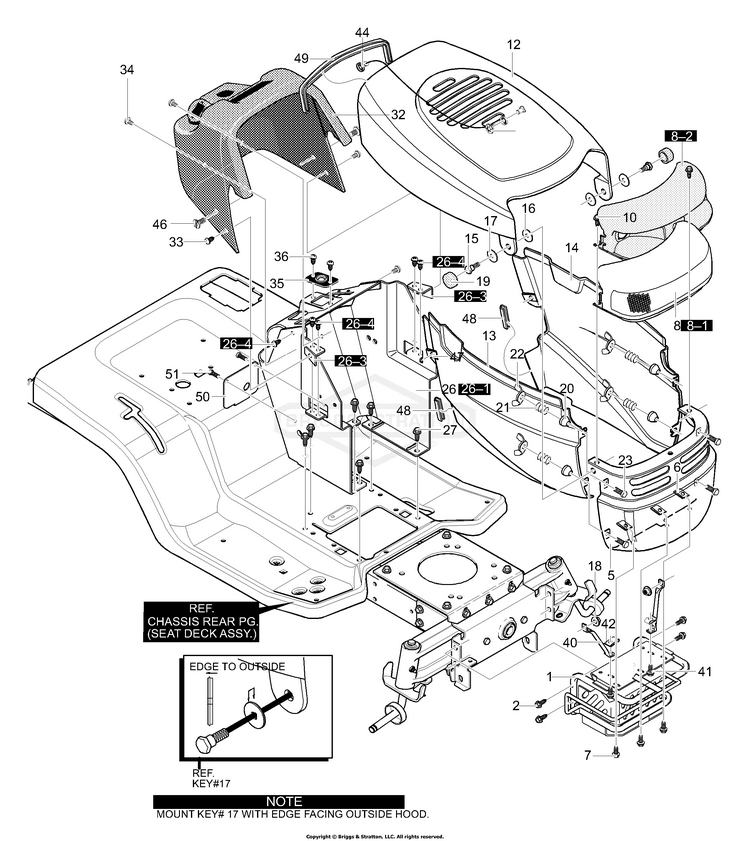

Chassis & Hood Assembly

...
...
1
BRACKET, Grille RH BS-MU69011-853
...
2
SCREW, 5/16-18 x 1.50 BS-MU711653
...
5
GRILLE BS-MU94455-848
...
6
NUT, "J" Tinnerman BS-MU710313
...
7
SCREW, 1/4-20x.63 BS-MU711642
...
8
Lens & Reflector BS-MU95234
...
8-1
Lens BS-MU94459
...
8-2
Reflector BS-MU94460
...
10
SCREW, 1/4-14x.50 BS-MU710197
...
12
HOOD Asm. BS-MU690052-848
...
13
PANEL, Side RH BS-MU94458-848
...
14
PANEL, Side LH BS-MU94457-848
...
15
BOLT, HHSH 3/8-16 BS-MU711625
...
16
WASHER, Plastic BS-MU710067
...
17
PIVOT Base BS-MU690114
...
18
NUT, 3/8-16 BS-MU711622
...
19
PIVOT Cap BS-MU690113
...
20
Quick Release BS-MU94474
...
21
SPRING, Comp. BS-MU710314
...
22
NUT, Wing BS-MU325232
...
23
SCREW, 1/4-20x1.25 BS-MU313674
...
26
Console Asm. BS-MU95291-848
...
26-1
Lower Console BS-MU95173
...
26-2
BRACKET, LH BS-MU94465
...
26-3
BRACKET, RH BS-MU94464
...
26-4
SCREW, 10-24x.500 BS-MU710196
...
27
SCREW, 5/16-18 x 0.75 BS-MU711606
...
32
DASH BS-MU690040
...
33
SCREW, 10-24x.500 BS-MU711629
...
34
SCREW, 10-24x.500 BS-MU711629
...
35
Steering Bracket BS-MU94075
...
36
SCREW, 1/4-14x.50 BS-MU710197
...
40
Strut, Grille BS-MU94519-848
...
41
SCREW, 1/4-20x.50 BS-MU711642
...
42
Speed Nut BS-MU711652
...
44
Lanyard Hood BS-MU643129
...
45
Pushnut BS-MU711677
...
46
SCREW, 1/4-20x.63 BS-MU711674
...
47
NUT, "J" Tinnerman BS-MU710313
...
48
Trim 9.50 Inches BS-MU55021
...
49
Trim, 26.80 Inches BS-MU55021
...
50
Access Panel BS-MU95366-848
...
51
SCREW, 10-24x.500 BS-MU711629
...
--
DECAL, Hayters 19/40 RH BS-MU712186
...
--
DECAL, Hayters 19/40 LH BS-MU712185
...
--
Instruction Book & Parts List BS-MUF-000795J
