40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

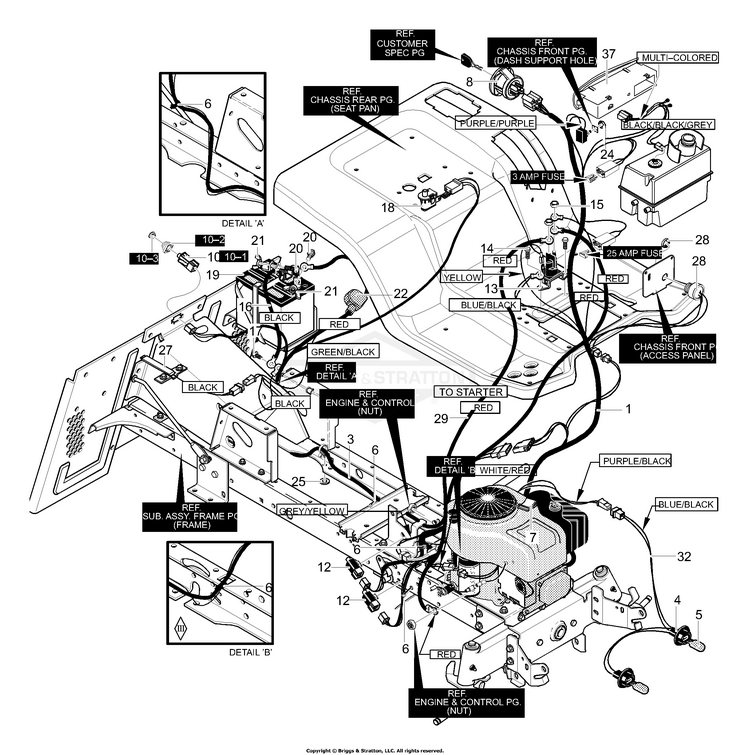

Electrical Assembly

...
...
1
Wire Harness BS-MU95379
...
3
Rear Harness BS-MU95381
...
4
Socket, Lamp BS-MU92372
...
5
Bulb, Light BS-MU90084
...
6
Cable Tie BS-MU57444
...
7
Wire Clip, Adhesive BS-MU55939
...
8
Switch, Ignition BS-MU94762
...
10
ASSEMBLY, Switch Double Pole Delta BS-MU690106
...
10-1
Switch, Double BS-MU320082
...
10-2
Boot, Switch BS-MU690074
...
10-3
Switch Cap BS-MU690075
...
12
Switch, Limit BS-MU94136
...
13
Solenoid BS-MU94613
...
14
SCREW 1/4x.50 BS-MU711619
...
15
NUT, 1/4-20 BS-MU711632
...
16
Ground Wire BS-MU95420
...
17
SCREW, 1/4x.50 BS-MU711619
...
18
Seat Switch BS-MU94159
...
19
Battery 5 Plate BS-MU92739
...
20
BOLT, 1/4-20x.63 BS-MU711680
...
21
Wing Nut BS-MU711636
...
22
Boot, Battery BS-MU335417
...
24
NUT, Plastic BS-MU711376
...
25
WASHER, Flat BS-MU711666
...
27
Tape Switch BS-MU95330
...
28
Buzzer, For Bag Full BS-MU95391
...
29
Wire, Lead Solenoid to Starter BS-MU711579
...
32
Wire Harness Headlights BS-MU340513
...
37
Elect. Diagnostic BS-MU690111
...
--
15 Amp Fuse BS-MU302031
