40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

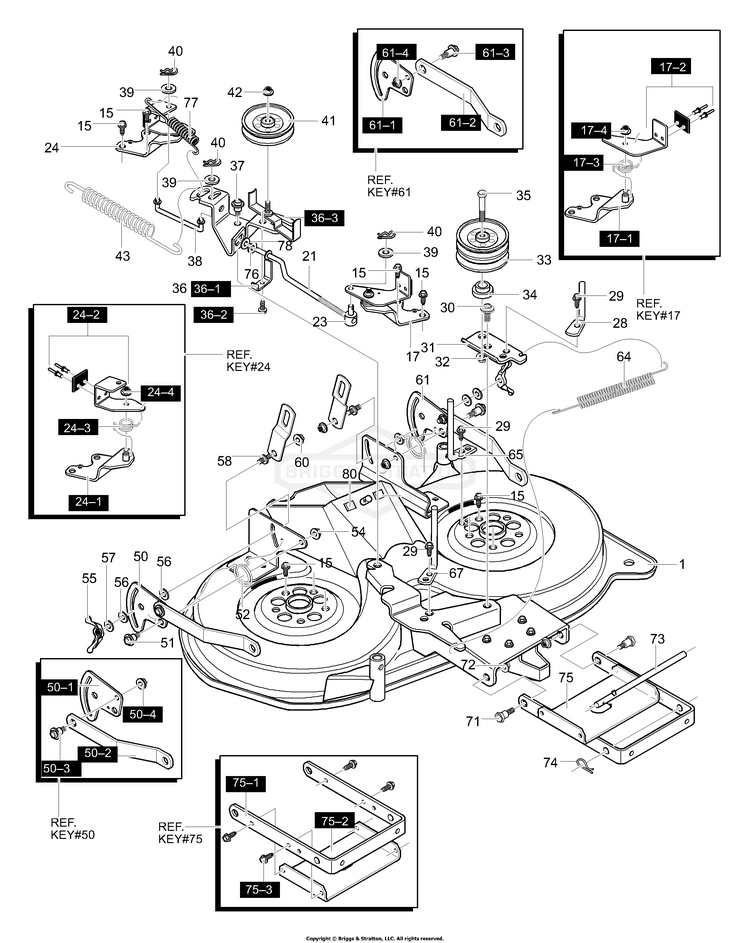

Deck Assembly (part 1)

...
...
1
Housing, 40" Deck BS-MU690156-853
...
17
Brake Arm Assembly LH BS-MU94665-853
...
17-1
Brake Support Assembly LH BS-MU94293
...
17-2
Brake Arm BS-MU94291
...
17-3
SPRING, Torsion BS-MU710110
...
17-4
NUT, 5/16-18 BS-MU710205
...
21
Link, Brake LH BS-MU690021
...
23
NUT, Adjusting BS-MU711591
...
24
Brake Arm Assembly RH BS-MU94664-853
...
24-1
Brake Support RH BS-MU94294
...
24-2
Brake Arm RH BS-MU94292
...
24-3
SPRING, Torsion BS-MU710077
...
24-4
NUT, 5/16-18 BS-MU710205
...
28
BELT Guide BS-MU711912
...
29
SCREW, 5/16-18 x 0.50 BS-MU780055
...
30
BOLT, Shoulder BS-MU711613
...
31
Arm, Double Idler BS-MU94261-853
...
32
NUT, 3/8-16 BS-MU711622
...
33
PULLEY, Idler Double Vee BS-MU94279
...
34
SPACER BS-MU94269
...
35
SCREW, 3/8-16 x 3.00 BS-MU711915
...
36
Idler Arm Assembly BS-MU94973-853
...
36-1
SPRING - Belt Guide BS-MU94312
...
36-2
SCREW, 1/4-20x.50 BS-MU710264
...
36-3
Idler Arm BS-MU94298
...
37
BOLT, Shoulder BS-MU711613
...
38
Link, Brake RH BS-MU690023
...
39
WASHER, Flat BS-MU712480
...
40
HAIR PIN BS-MU711682
...
41
PULLEY, Idler BS-MU690024
...
42
NUT, 3/8-16 BS-MU711622
...
43
SPRING, Extension BS-MU710234
...
50
ASSEMBLY, Plate,Rear Sus Bkt RH BS-MU690158-853
...
50-1
Plate-Suspension BS-MU94128
...
50-2
Suspension Bracket Rear BS-MU94055
...
50-3
BOLT, Shoulder BS-MU710095
...
50-4
NUT, 3/8-16 BS-MU710140
...
51
BOLT, Shoulder BS-MU711611
...
52
SPRING, Torsion RH BS-MU710112
...
53
SPRING, Torsion LH BS-MU710113
...
54
NUT, 3/8-16 BS-MU711622
...
55
Wingnut, 5/16-18 BS-MU711600
...
56
Pad, Friction BS-MU94137
...
57
WASHER BS-MU711628
...
58
PIN, Hanger BS-MU711595
...
60
NUT, 3/8-16 BS-MU711622
...
61
ASSEMBLY, Plate Rear Sus Brkt., LH BS-MU690159-853
...
61-1
Plate-Suspension BS-MU94128
...
61-2
Suspension Bracket, Rear BS-MU94055
...
61-3
BOLT, Shoulder BS-MU710095
...
61-4
NUT, 3/8-16 BS-MU710140
...
64
SPRING, Extension BS-MU710233
...
65
BELT Guide BS-MU711913
...
67
BELT Guide BS-MU690030
...
71
BOLT, Shoulder BS-MU711611
...
72
NUT, 3/8-16 BS-MU711622
...
73
ROD, Hanger BS-MU95295
...
74
HAIR PIN BS-MU711676
...
75
ASSEMBLY, Bracket & Stiffener BS-MU690058-853
...
75-1
BRACKET, Front Suspension BS-MU94058
...
75-2
Stiffener BS-MU95057
...
75-3
SCREW, 5/16-18 x 0.75 BS-MU710079
...
76
FLATWASHER BS-MU583409
...
77
SPRING, Extension BS-MU710658
...
78
WASHER, Flat BS-MU712480
...
80
Pad, Adhesive BS-MU318197
