40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

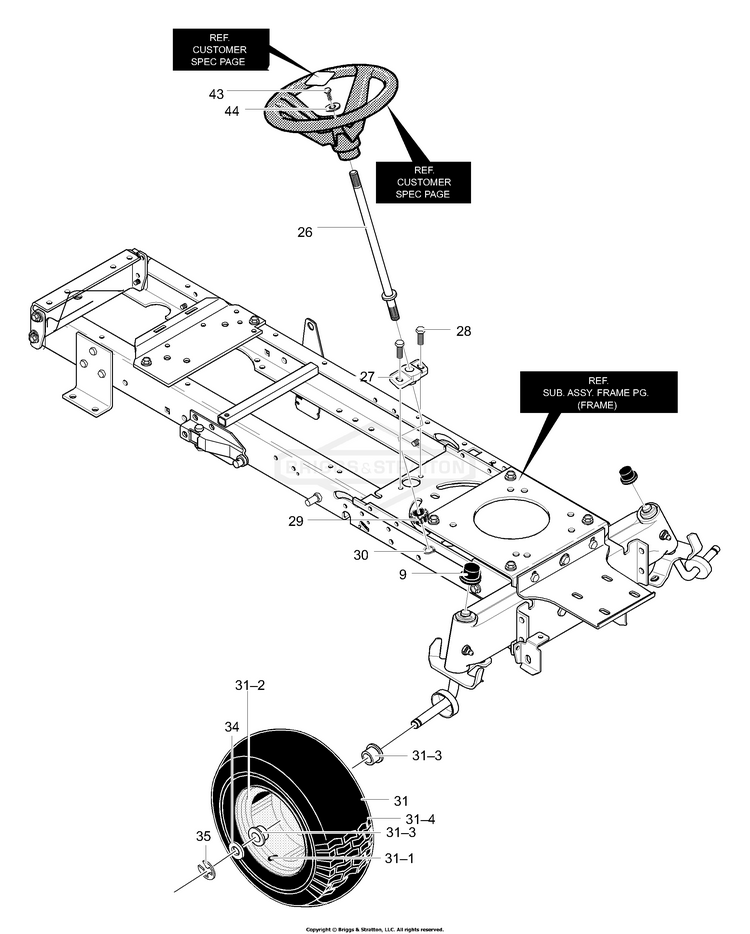

Steering

...
...
9
Dust Hub Cap BS-MU094618
...
26
Shaft, Steering BS-MU94520
...
27
BEARING, Lower BS-MU94124
...
28
SCREW, 5/16-18 x 0.75 BS-MU711606
...
29
Gear, Pinion BS-MU94122
...
30
Retaining Ring BS-MU710102
...
31
Tire & Rim BS-MU692641
...
31-1
Valve Stem BS-MU338512
...
31-2
Rim BS-MU338517
...
31-3
BEARING BS-MU338513
...
31-4
Tire BS-MU338514
...
34
FLATWASHER BS-MU711758
...
35
E-Ring BS-MU0011X3
...
43
SCREW, 1/4-20x.75 BS-MU711719
...
44
FLATWASHER BS-MU711663
...
--
Hub Cap BS-MU094618
