40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

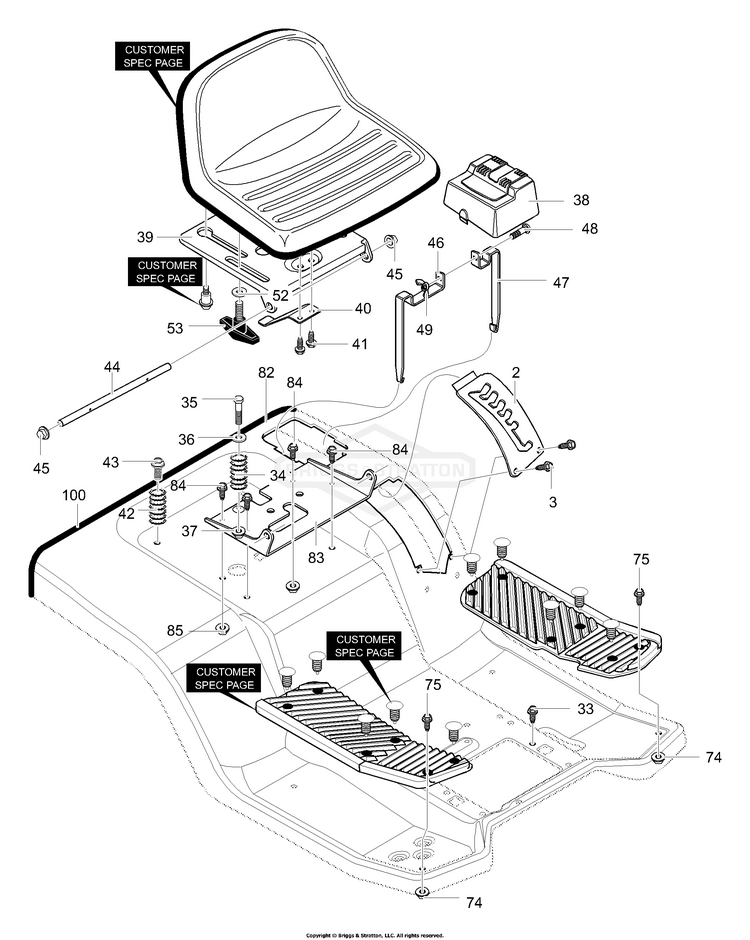

Rear Chassis Assembly (part 2)

...
...
2
Plate, Lift Detent BS-MU95190-853
...
3
SCREW, #12x.50 BS-MU711741
...
33
SCREW, 5/16-18 x 0.75 BS-MU711606
...
34
SPRING, Compression BS-MU710136-853
...
35
BOLT, Shoulder 1/4-20 BS-MU711610
...
36
Zinc Washer Cup BS-MU95293
...
37
NUT, 1/4-20 Centerlock BS-MU302635
...
38
Cover, Battery BS-MU94200
...
39
SUPPORT, Seat BS-MU94154-848
...
40
SPRING - Leaf BS-MU94057
...
41
SCREW, 1/4-20x.50 BS-MU711592
...
42
SPRING, Compression BS-MU710109-853
...
43
SCREW, 5/16-18 x 0.75 BS-MU711606
...
44
Hinge Seat Pivot BS-MU95294
...
45
NUT, Push Cap BS-MU711627
...
46
Battery Bracket, LH BS-MU95393-853
...
47
Battery Bracket, RH BS-MU95394-853
...
48
BOLT, Carriage 1/4-20x.63 BS-MU711680
...
49
NUT, Wing 1/4-20 BS-MU711636
...
52
WASHER, Flat BS-MU711644
...
53
BOLT, Wing 5/16-18x.50 BS-MU711747
...
74
NUT, 5/16-18 BS-MU710026
...
75
BOLT, Carriage 5/16-18x.75 BS-MU711891
...
82
Seat Deck Pedal BS-MU94311-848
...
83
BRACKET, Pivot Seat BS-MU94153-848
...
84
SCREW, 5/16-18 x 0.75 BS-MU711606
...
85
NUT, 5/16-18 BS-MU711634
...
100
Trim 41.00 Inches BS-MU55021
