40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

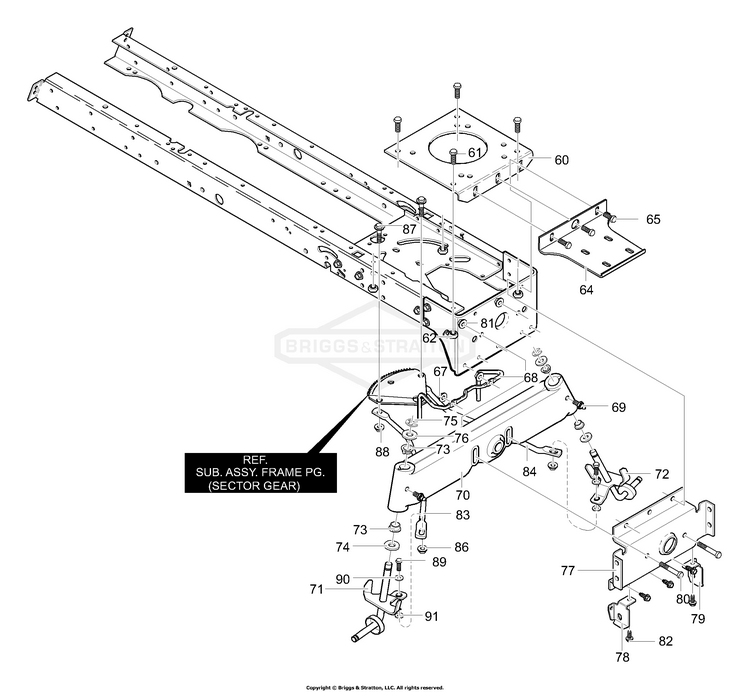

Frame Assembly (part 2)

...
...
60
Engine Plate BS-MU94006
...
61
SCREW, .312-18x.75 BS-MU26X249
...
62
NUT, 5/16-18 BS-MU015X88
...
64
BRACKET, Muffler Mount BS-MU94307
...
65
SCREW, .312-18x.75 BS-MU26X249
...
67
NUT, 5/16-18 BS-MU015X79
...
68
GUIDE-Stack Pulley Belt BS-MU94310
...
69
Zerk, Grease BS-MU706
...
70
Axle, Cast Machined BS-MU95405
...
71
Spindle, Long RH BS-MU95182
...
72
Spindle, Long LH BS-MU95183
...
73
BEARING, Spindle BS-MU92527
...
74
WASHER, .766IDx1.62ID BS-MU17X113
...
75
E-Ring BS-MU0011X3
...
76
WASHER, Flat BS-MU17X195
...
77
HANGER, Axle BS-MU94007
...
78
HANGER, Deck RH BS-MU690199
...
79
HANGER, Deck LH BS-MU690198
...
80
SCREW, 5/16-18 x 3.00 BS-MU180113
...
81
NUT, 5/16-18 BS-MU015X88
...
82
SCREW, .312-18x.75 BS-MU26X249
...
83
Drag Link, LH BS-MU95329
...
84
Drag Link, RH BS-MU95328
...
86
NUT, 3/8-16 BS-MU015X84
...
87
BOLT, Shoulder BS-MU009X57
...
88
NUT, 3/8-16 BS-MU015X84
...
89
SCREW, 3/8-16 x 1.50 BS-MU01X111
...
90
FLATWASHER BS-MU17X104
...
91
FLATWASHER BS-MU017X53
