40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

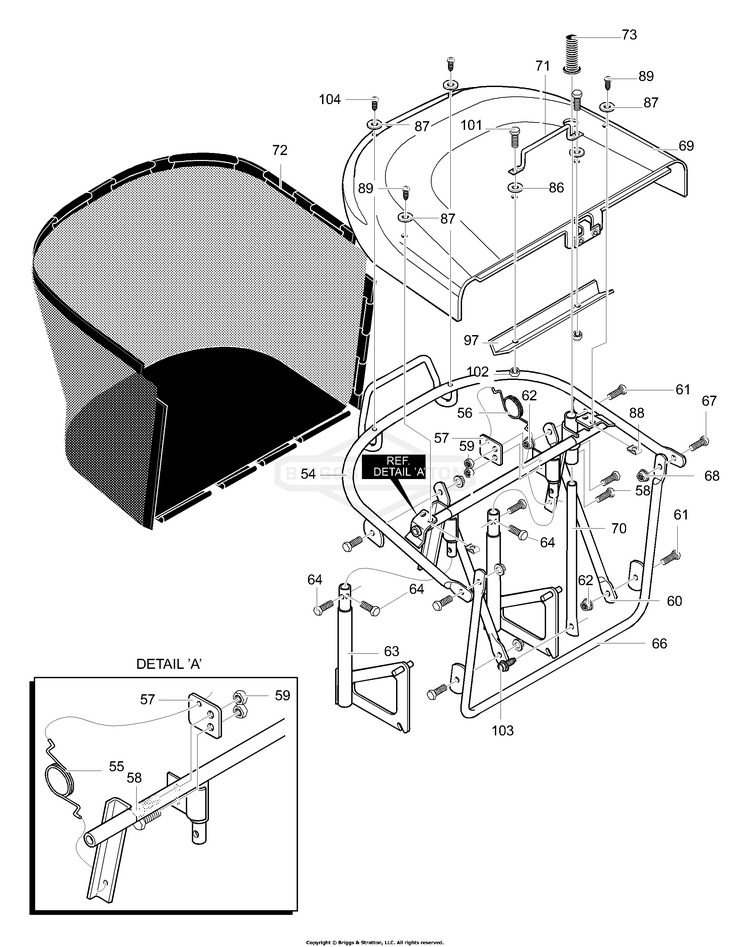

Grass Bagger Assembly

...
...
54
Asm. Weld Upper Frame BS-MU690044-853
...
55
SPRING, Torsion RH BS-MU690003
...
56
SPRING, Torsion LH BS-MU690004
...
57
BRACKET, Spring Collector BS-MU95339-853
...
58
SCREW, 1/4-20x.50 BS-MU313686
...
59
NUT, 1/4-20 BS-MU73826
...
60
BRACE, Frame Collector BS-MU94850-853
...
61
SCREW, 1/4-20x.62 BS-MU711909
...
62
NUT, 1/4-20 BS-MU711632
...
63
Asm. Support Collector BS-MU95343-853
...
64
SCREW, 1/4-20x1.50 BS-MU711653
...
66
Asm. Front Frame Collect BS-MU95349-853
...
67
SCREW, 1/4-20x.62 BS-MU711909
...
68
NUT, 1/4-20 BS-MU711632
...
69
Top Collector Assembly BS-MU94908-848
...
70
HANDLE, Dump Collector BS-MU690019
...
71
HANDLE, Reba Collector BS-MU690506-853
...
72
Reba Collector Bag BS-MU95389
...
73
Rubber Grip BS-MU94854
...
86
WASHER BS-MU712129
...
87
WASHER BS-MU711921
...
88
NUT, 1/4-20 Tinnerman BS-MU578107
...
89
SCREW, 1/4-20x.63 BS-MU711674
...
97
BRACE, Bagger BS-MU690010-853
...
101
SCREW, 1/4-20x1.50 BS-MU712068
...
102
NUT, 1/4-20 BS-MU711632
...
103
SCREW, #12x.50 BS-MU711741
...
104
SCREW, #12x.50 BS-MU711741
