40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

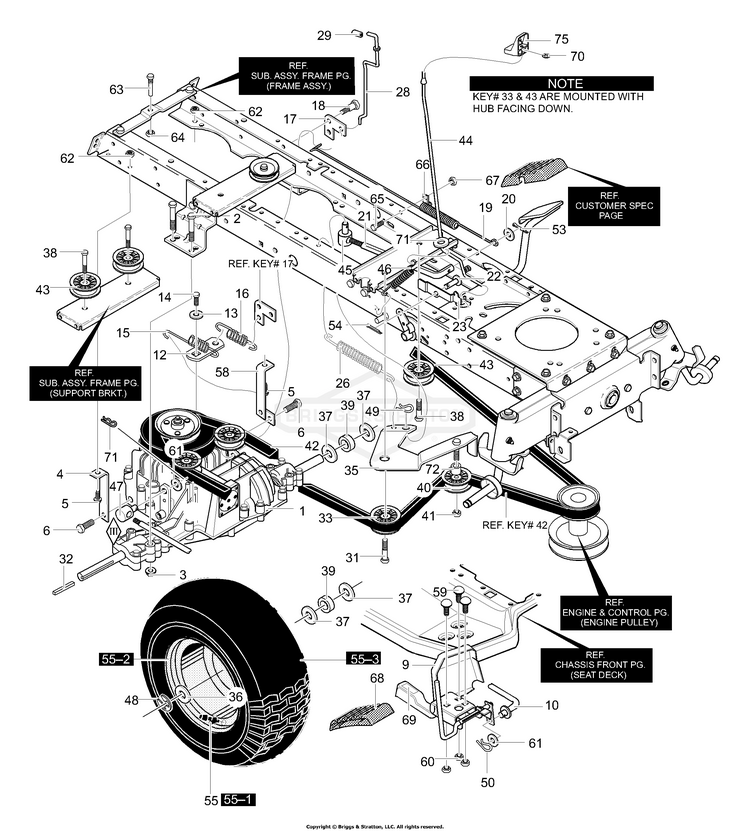

Motion Drive

...
...
2
SCREW, 5/16-18 x 2.50 BS-MU711669
...
3
NUT, 5/16-18 BS-MU711634
...
4
BRACKET, Stabilizer BS-MU94224-853
...
5
SCREW, 5/16-18 x 1.00 BS-MU711893
...
6
SCREW, 5/16-18 x 0.75 BS-MU710268
...
9
Pedal Assy., Hydro BS-MU690134-853
...
10
ROD, Foot Control BS-MU690018
...
12
BRACKET, Shift BS-MU323212
...
13
WASHER, Transaxle BS-MU711895
...
14
SCREW, 1/4-28x.75 BS-MU01X145
...
15
SPRING - Transaxle BS-MU94622
...
16
SPRING BS-MU326780
...
17
Disconnect Bracket BS-MU94621-853
...
18
BOLT, HHSH 5/16-18 BS-MU711896
...
19
SPRING, Brake BS-MU95424
...
20
WASHER, Flat BS-MU711921
...
21
ROD, Clutch BS-MU690016
...
22
PIN, Clevis BS-MU711903
...
23
Latch, Park Brake BS-MU690048
...
26
SPRING, Tension BS-MU711522
...
28
ROD, Disconnect Ctrl BS-MU690015
...
29
GRIP, Hydro Disconnect BS-MU690032
...
31
SCREW, 3/8-16 x 1.25 BS-MU711905
...
32
Key, Square BS-MU52928
...
33
PULLEY, Idler BS-MU1001065
...
35
ASSEMBLY, Idler Arm Traction BS-MU94238-853
...
36
WASHER, Flat BS-MU711758
...
37
WASHER, Flat BS-MU711904
...
38
SCREW, 3/8-16 x 1.25 BS-MU711905
...
39
SPACER BS-MU95274
...
40
PULLEY, Idler BS-MU690409
...
41
NUT, 3/8-16 BS-MU711920
...
42
BELT, V 4L 112.75 BS-MU94609
...
43
PULLEY, Idler BS-MU1001065
...
44
ROD-Parking Brake BS-MU95108
...
45
NUT, 5/16-18 Adjusting BS-MU711898
...
46
Extension Spring BS-MU165X107
...
47
Adjusting Nut 1/2-13 BS-MU711594
...
48
E-Ring BS-MU0011X3
...
49
PIN, Hair BS-MU711659
...
50
PIN, Hair BS-MU711676
...
53
PIN, Cotter BS-MU71081
...
54
PIN, Cotter BS-MU71081
...
55
Tire & Rim BS-MU692511
...
55-1
Valve Stem BS-MU338512
...
55-2
Rim BS-MU338524
...
55-3
Tire BS-MU338525
...
58
BRACKET, Stabilizer BS-MU94225-853
...
59
BOLT, Carr. 5/16-18x.75 BS-MU711688
...
60
NUT, 5/16-18 BS-MU710026
...
61
FLATWASHER BS-MU711894
...
62
NUT, 1/4-20 BS-MU710026
...
63
SCREW Guide BS-MU711745
...
64
NUT, 5/16-18 BS-MU710026
...
65
SCREW, 1/4-20x.50 BS-MU313686
...
66
Retainer, Wire BS-MU711742
...
67
NUT, 1/4-20 BS-MU780285
...
68
Pad, Speed Ctrl Pedal BS-MU94798
...
69
Pad, Toe Sandpaper BS-MU93249
...
70
Pushnut BS-MU711691
...
71
WASHER, Flat BS-MU71067
...
72
SPACER 1/2 to 17MM BS-MU690369
...
75
Parking Brake Knob BS-MU95315
...
--
Hubcap BS-MU094618
