40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

Engine And Control Assembly

...
...
--
Clip, Speed BS-MU94951
...
2
Engine Bolt 3/8x1.25 BS-MU0025X7
...
4
Muffler BS-MU94654
...
5
Exhaust Tube BS-MU94657
...
8
SCREW, 5/16-18 x 0.75 BS-MU313676
...
9
SCREW, 5/16-18 x 0.75 BS-MU711606
...
10
WASHER, Regsptlk BS-MU313679
...
11
Gasket, Muffler BS-MU91309
...
12
SHIELD, Anti-Dehydration BS-MU95192-853
...
18
SCREW, 1/4-20x.63 BS-MU711642
...
24
Stack Pulley Assembly BS-MU690456
...
25
WASHER, Regsptlk BS-MU120383
...
26
BOLT, 7/16-20x1.75 BS-MU1X169
...
27
Fuel Tank w/Sensor BS-MU94484
...
28
SCREW, 15TPIX BS-MU711681
...
29
Heat Shield, Side BS-MU333772-853
...
30
GAS LINE TUBING 16 In. BS-MU41007
...
31
Cable Tie BS-MU57444
...
32
CLAMP, Fuel Line Yellow BS-MU336890
...
33
SCREW, 1/4-20x.50 BS-MU711592
...
34
Fuel Cap BS-MU92317
...
35
Oil Drain Valve Assy. BS-MU325547
...
36
Cap, Oil Drain Valve BS-MU327422
...
38
Throttle Control BS-MU95263
...
39
SCREW, #8-16x.50 BS-MU711686
...
45
SCREW, 10-16x.50 BS-MU711593
...
46
NUT, 1/4-20 Reghexjam BS-MU711601
...
50
Flat washer BS-MU17X170
...
54
Pushnut BS-MU711677
...
56
WASHER, Flat BS-MU17X170
...
57
WASHER, Exlk BS-MU711668
...
59
Plenum BS-MU95324

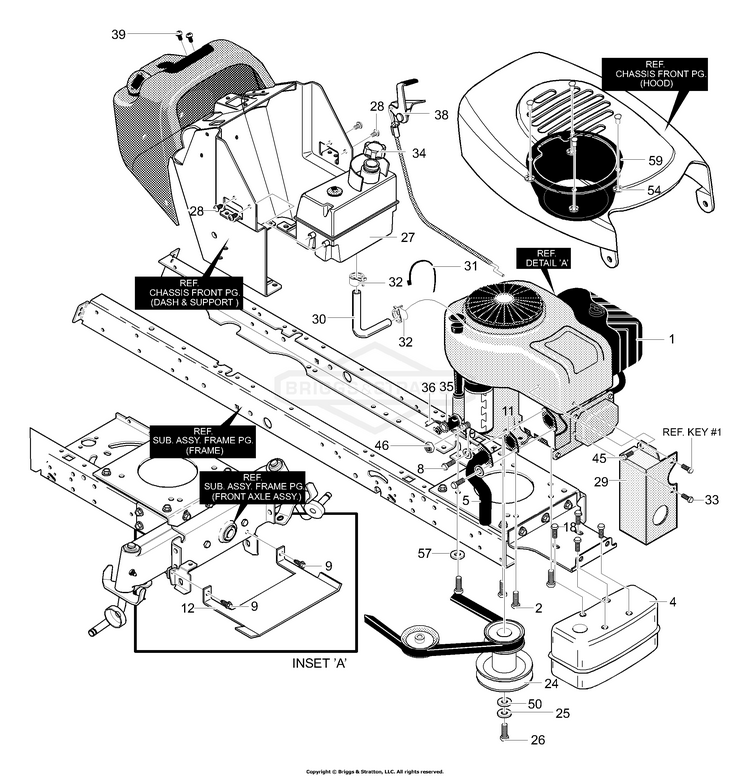

Schematic Image Zoomed
