40377x11B Murray - Lawn Tractor (2000)

Model: 40377x11B

Back To Assemblies

Save Part Not Listed?
product name

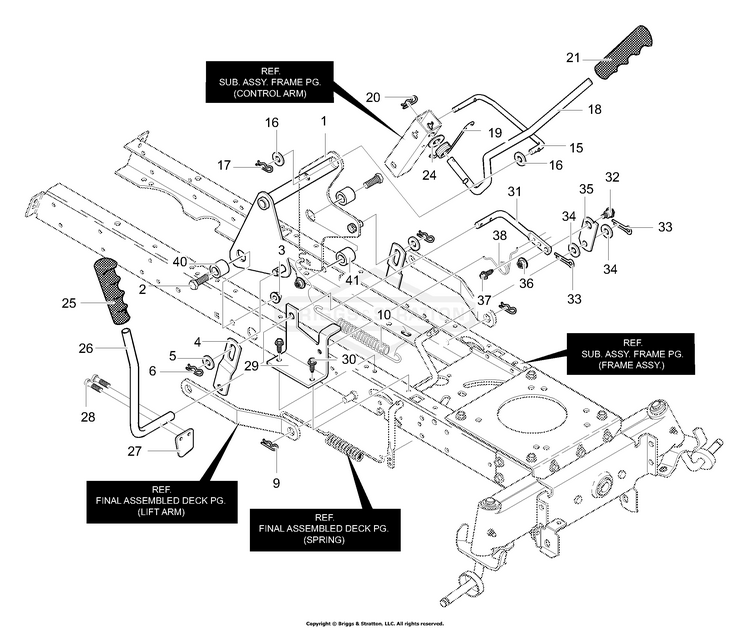

Mower Suspension Assembly

...
...
1
ASSEMBLY, Lift Arm BS-MU95233-853
...
2
SCREW, 1/2-13x1.50 BS-MU711917
...
3
NUT, 1/2-13 Lock BS-MU711918
...
4
BRACKET. Lift Link BS-MU94262-853
...
5
WASHER, Flat BS-MU711617
...
6
HAIR PIN BS-MU711676
...
9
HAIR PIN BS-MU711676
...
10
SPRING, Extension BS-MU710235
...
15
Link-Lift Handle BS-MU711981
...
16
WASHER, Flat BS-MU711617
...
17
HAIR PIN BS-MU711676
...
18
HANDLE, Lift BS-MU690532
...
19
Torsion Spring BS-MU710111
...
20
HAIR PIN BS-MU711676
...
21
GRIP, Lift BS-MU94497
...
24
WASHER, Flat BS-MU711616
...
25
GRIP BS-MU94496
...
26
PTO Handle BS-MU690126
...
27
Paddle, Switch BS-MU95284
...
28
SCREW, Thread Form BS-MU711621
...
29
BRACKET, PTO BS-MU94018-853
...
30
SCREW, 5/16-18 x 0.50 BS-MU780055
...
31
LEVER, PTO BS-MU95283
...
32
BOLT, Shoulder 3/8-16 BS-MU711613
...
33
HAIR PIN BS-MU711659
...
34
WASHER, Flat BS-MU711615
...
35
Link PTO BS-MU95282
...
36
NUT, 3/8-16 BS-MU711622
...
37
SCREW 5/16-18x.75 BS-MU711606
...
38
Torsion Spring BS-MU710141
...
40
SPACER BS-MU94309
...
41
SPACER, Sleeve BS-MU56150
