40373x68A Murray - Lawn Tractor (2001)

Model: 40373x68A

Back To Assemblies

Save Part Not Listed?
product name

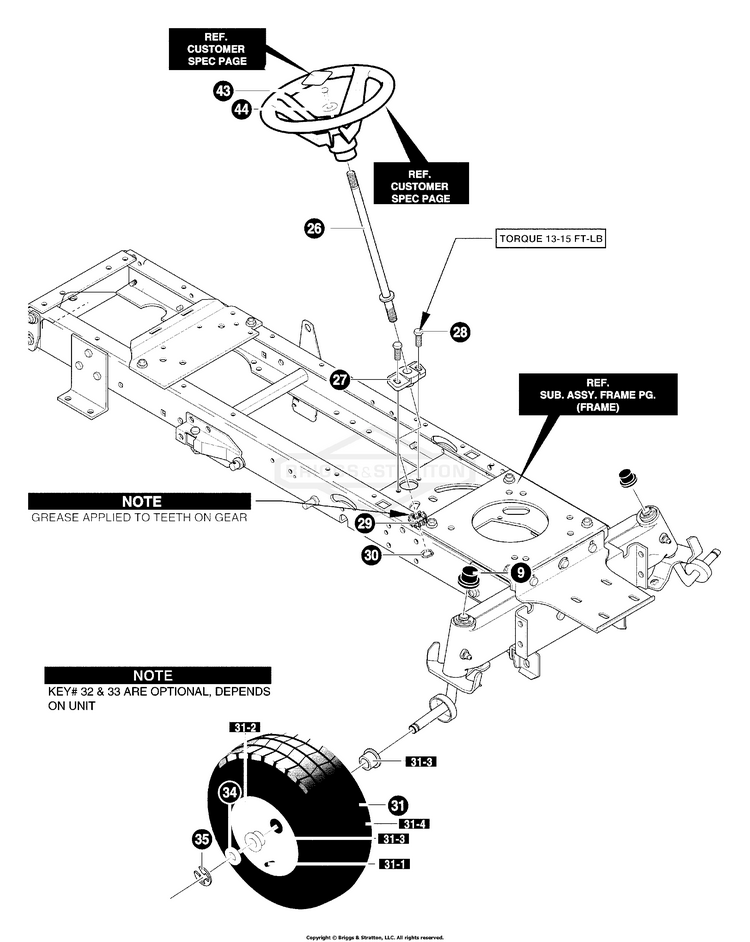

Steering Assembly

...
...
9
HUB CAP BS-094618MA
...
26
SHAFT, STEERING BOLT ON BS-094520
...
27
BEARING-LOWER BS-094124MA
...
28
SCREW, 5/16-18 x 0.75 BS-711606MA
...
29
GEAR PINNION BS-094122
...
30
RING, RET E. BS-710102
...
31
TIRE & RIM 15X6.00-6 BS-692641
...
31-1
VALVE STEM BS-338512
...
31-2
RIM BS-338517MA
...
31-3
BEARING BS-338513
...
31-4
TIRE 15X6.00-6 BS-338514
...
34
WASHER, FLAT BS-711758
...
35
RING, E .750D .050T BS-0011X3MA
...
43
SCREW, 1/4-20X.75 BS-711719
...
44
FLATWASHER BS-711663MA
