40373x68A Murray - Lawn Tractor (2001)

Model: 40373x68A

Back To Assemblies

Save Part Not Listed?
product name

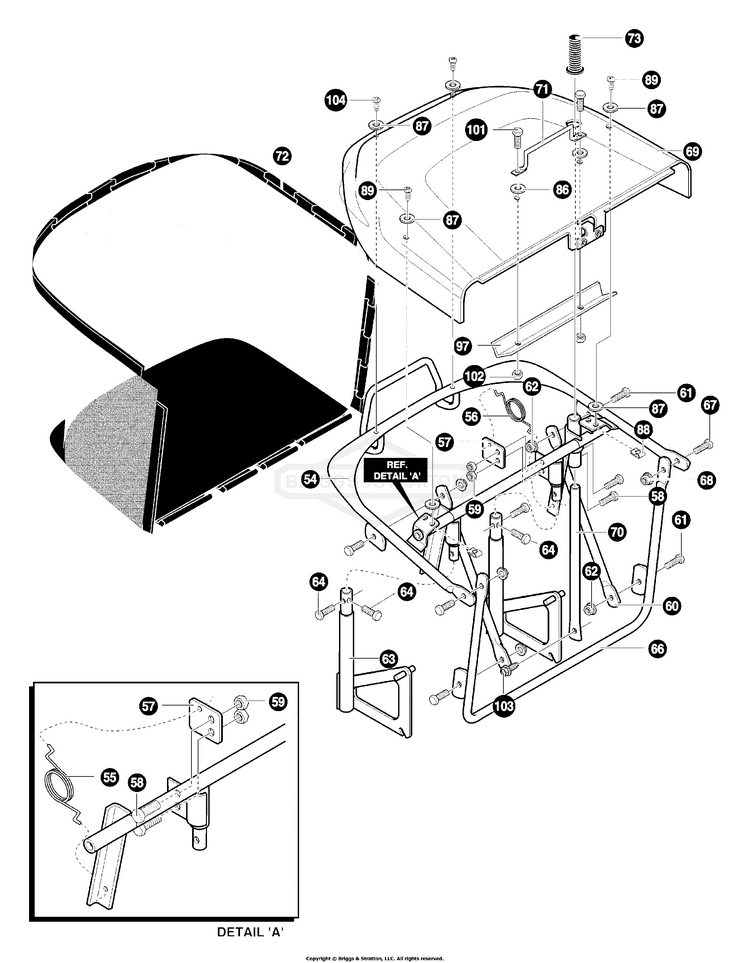

Rear Bagger Assembly

...
...
54
ASM. WLD- UPPER FRAME BS-690044-853
...
55
SPRING, TORSION RH BAG CLOSE BS-690003
...
56
SPRING, TORSION LH BAG CLOSE BS-690004
...
57
BRACKET, SPRING COLLECTOR BS-95339-853
...
58
SCREW, 1/4-20X.62 BS-711909
...
59
NUT, HEX, KEPS,1/4-20 BS-703914
...
60
BRACE, FRAME COLLECTOR BS-94850-853
...
61
SCREW, 1/4-20X.62 BS-711909
...
62
NUT, HEX, KEPS,1/4-20 BS-703914
...
63
ASM. SUPPORT COLLECTOR BS-95343-853
...
64
SCREW, 5/16-18 x 1.50 BS-711653
...
66
ASM., FRONT FRAME COLLECT BS-95349-853
...
67
SCREW, 1/4-20X.62 BS-711909
...
68
NUT, 1/4-20 BS-711632
...
69
TOP COLLECTOR ASM. BS-94908-884
...
70
HANDLE, DUMP REBA COLLECTOR BS-690019
...
71
HANDLE, REBA COLLECTOR BS-690506-853
...
72
REBA COLLECTOR BAG BS-95389MA
...
73
RUBBER GRIP BS-94854MA
...
85
NUT, 5/16-18 BS-711634MA
...
86
WASHER, .281X1.25X.06 BS-712129
...
87
WASHER, FLAT BS-711921
...
88
NUT, 1/4-20 TINN U BS-578107
...
89
SCREW, 1/4-20X.63 BS-711674MA
...
97
BRACE, BAGGER BS-690010-853
...
101
SCREW, 1/4-20X1.50 BS-712068
...
102
NUT, 1/4-20 BS-711632
...
103
SCREW, #12X.50 BS-711741
...
104
SCREW, #12X.50 BS-711741
