40373x68A Murray - Lawn Tractor (2001)

Model: 40373x68A

Back To Assemblies

Save Part Not Listed?
product name

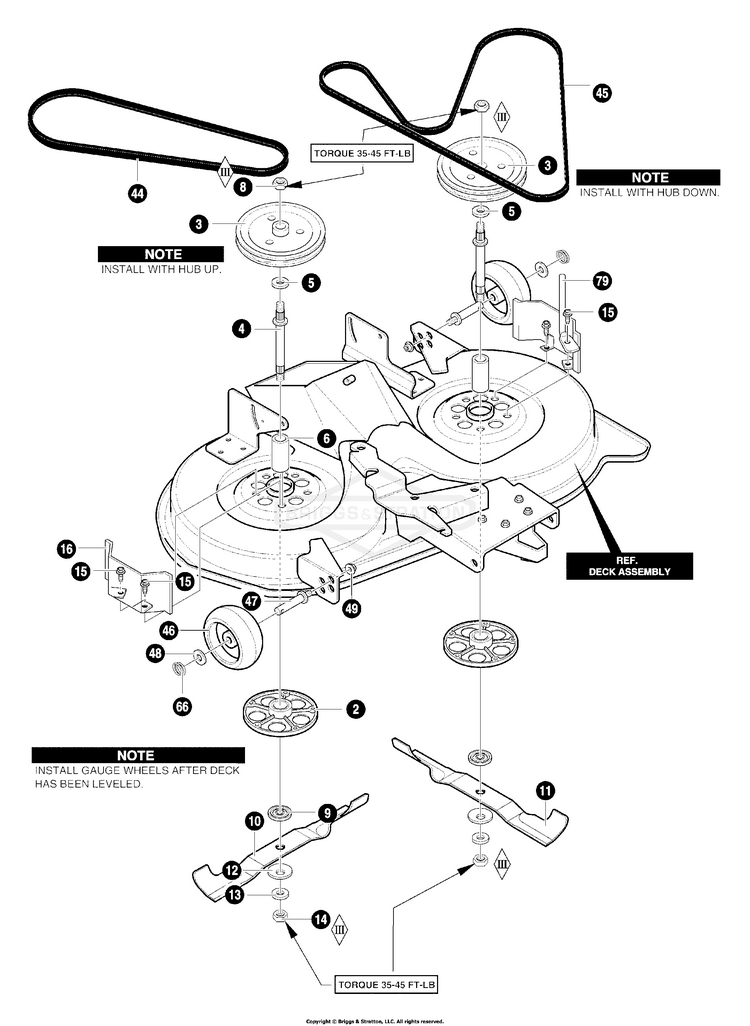

Blades & Belts

...
...
2
ASM. JACKSHAFT HOUSING W/VENTS BS-094305
...
3
PULLEY, DECK BS-690020MA
...
4
JACKSHAFT BS-491922MA
...
5
WASHER, FLAT BS-17X165MA
...
6
SPACER BS-091903MA
...
8
NUT, 9/16-18 CTRLK BS-711910
...
9
ADAPTER, DECK/BLADE BS-94207MA
...
10
SHIELD-CYLINDER BS-698454
...
11
BLADE RH BS-690500
...
12
WASHER, BELLEVILLE BS-17X166MA
...
13
WASHER, FLAT BS-17X165MA
...
14
NUT, 9/16-18 BS-711910
...
15
SCREW, 3/8-16 x 1.00 BS-711911
...
16
PULLEY COVER BS-94288-853
...
44
BELT BS-710231
...
45
BELT, V BS-690071
...
46
WHEEL, GAUGE BS-092683MA
...
47
BOLT BS-711746
...
48
FLATWASHER BS-711615MA
...
49
NUT, 3/8-16 BS-711622
...
66
Ring, Locking BS-031X11MA
...
79
ZINC ROD BELT GUIDE BS-95280
