40373x68A Murray - Lawn Tractor (2001)

Model: 40373x68A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

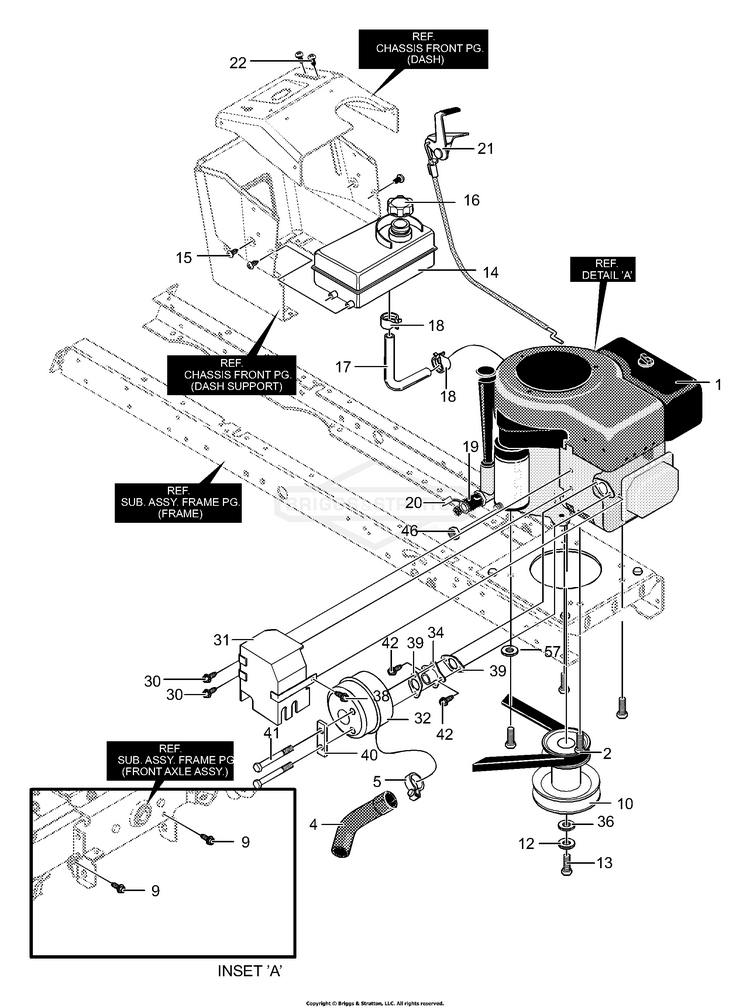

Engine And Control Assembly (part 1)

...
...
1
Screw (Control Bracket) BS-691147
...
2
SCREW-HEX WSHR HD TAP BS-2828635SM
...
4
PIPE, EXHAUST 14.5/15.5 BS-092559
...
5
CLAMP ASSEMBLY BS-092558MA
...
9
SCREW BS-711606MA
...
10
STACK PULLEY BS-690456MA
...
12
WASHER BS-120383
...
13
BOLT, 7/16-20 X 1.75 BS-01X169
...
14
TANK, Fuel 1.4 Gal. BS-7601092MA
...
15
SCREW BS-711681
...
16
FUEL CAP BS-092317MA
...
17
SUSPENSION ARM ASSEMBLY - RH, Complete BS-5047452
...
18
CLAMP, FUEL LINE BS-336890
...
19
OIL DRAIN VALVE ASSEMBLY BS-325547MA
...
20
CAP,OIL DRAIN VALVE ASM.Y BS-327422
...
21
THROTTLE, CONTROL BS-94361
...
22
SCREW BS-711637
...
30
SCREW BS-712099
...
31
HEAT SHIELD ASSY BS-094324
...
32
MUFFLER, ROUND BS-095206
...
34
ADAPTER, Muffler BS-796002
...
36
WASHER.46.97.25 FLAT BS-17X170MA
...
38
SCREW.25-20 S-T BS-26X263MA
...
39
GASKET, Exhaust BS-692236
...
40
LOCK-SCREW 223016 BS-092378MA
...
41
BOLT BS-712100MA
...
42
SCREW BS-06X103MA
...
46
NUT BS-711601
...
57
WASHER BS-711668
