40373x68A Murray - Lawn Tractor (2001)

Model: 40373x68A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Rear Chassis

...
...
4
ASSY, BACK PLATE/BATTERY BS-1001068-853
...
4-1
ASM. BACKPLATE, ONE PIECE BS-1001030
...
4-2
HITCH, FLAT BACK PLATE BS-1001063
...
4-3
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
4-4
NUT, HEX BS-710026
...
4-5
WASHER, FLAT BS-711921
...
4-6
BATTERY TRAY ASM. BS-94563
...
4-7
SCREW, 5/16-18 x 0.50 HHC BS-180073MA
...
4-8
NUT, 5/16-18, GR5 BS-703409
...
5
WELDMENT - LATCH LEVER BS-95359-853
...
6
ROD, BRACE BS-690097
...
7
NUT, 3/8-16 HWDFL WHIZ-LOCK BS-711906
...
8
SCREW BS-691340
...
9
SCREW, 5/16-18 x 0.75 HHWATAP BS-711606MA
...
12
SCREW, 5/16-18 BS-703354
...
13
NUT, 5/16-18 HEXWDFLLK WHIZ BS-710026
...
14
SCREW 5/16-18X.75 HHWATAP BS-711606MA
...
15
NUT, 5/16-18 HEXWDFLLK WHIZ BS-710026
...
16
BRACKET, FLEX SWITCH MOUNTING BS-690245
...
17
WIRE CLIP, ADHESIVE BS-055939MA
...
18
FLATWASHER, .250X.56X.047 BS-711666
...
19
PAD, ADHESIVE 1.00X1.50X.12 BS-318197
...
20
ASM., T/A SHIELD & UPPER CHUTE BS-690102-853
...
20-1
CHUTE WELD ASM. UPPER BS-94350
...
20-2
GUIDE, PSTN, UNLDR BS-95367GS
...
20-3
SCREW.25-20 S-T BS-26X263MA
...
21
SCREW, 5/16-18 x.75 HHC BS-711606MA
...
22
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
23
NUT, 5/16-18 HEXWDFLLK WHIZ BS-710026
...
24
MIDDLE CHUTE ASSY BS-94296-853
...
25
BOLT, SHOULDER, 3/8-16 BS-009X57MA
...
26
FLAP, CHUTE BS-94264MA
...
27
FASTENER, RATCHET BS-309235MA
...
28
FLATWASHER BS-711617
...
29
PIN, 3/32 X 1.6 BS-703300
...
30
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
31
NUT, 5/16-18 HEXWDFLLK WHIZ BS-710026
...
80
TAPE, DOUBLE SIDED FOAM 3/4" WD BS-712009
...
81
TAPE, DOUBLE SIDED FOAM 3/4" WD BS-712009
...
90
SCREW.25-20 S-T BS-26X263MA
...
91
CABLE TIE BS-57444

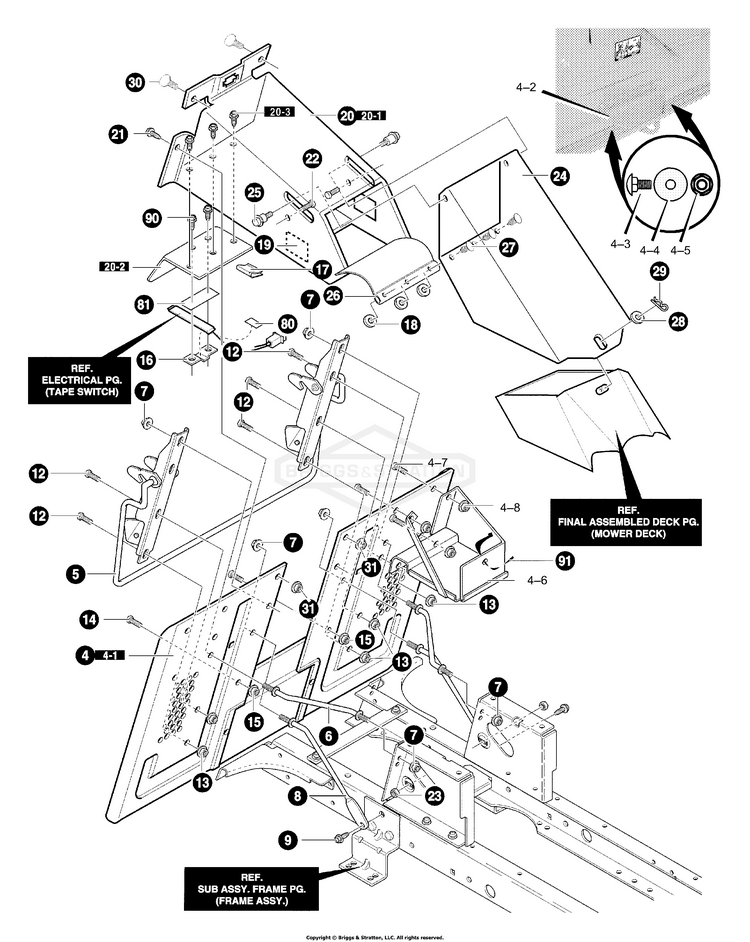

Schematic Image Zoomed
