40373x51B Murray - Lawn Tractor (2000)

Model: 40373x51B

Back To Assemblies

Save Part Not Listed?

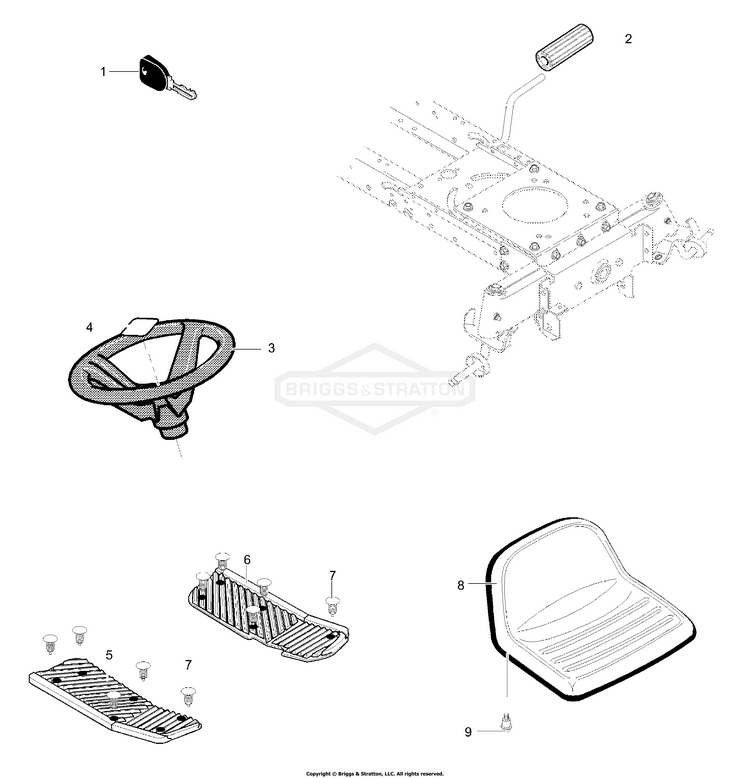

product name

Customer Spec

...
...
1
KEY-IGNITIOM W/PLASTI BS-1714054SM
...
2
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
3
WHEEL, Steering BS-1687602YP
...
4
Insert, 4-Spoke BS-711326MA
...
5
Mat, Right BS-095409MA
...
6
Mat, Left BS-095408MA
...
7
Ratchet Fastener BS-309325
...
8
Seat BS-094163
...
9
Shoulder Bolt 5/16-18 BS-711740
