40373x51B Murray - Lawn Tractor (2000)

Model: 40373x51B

Back To Assemblies

Save Part Not Listed?
product name

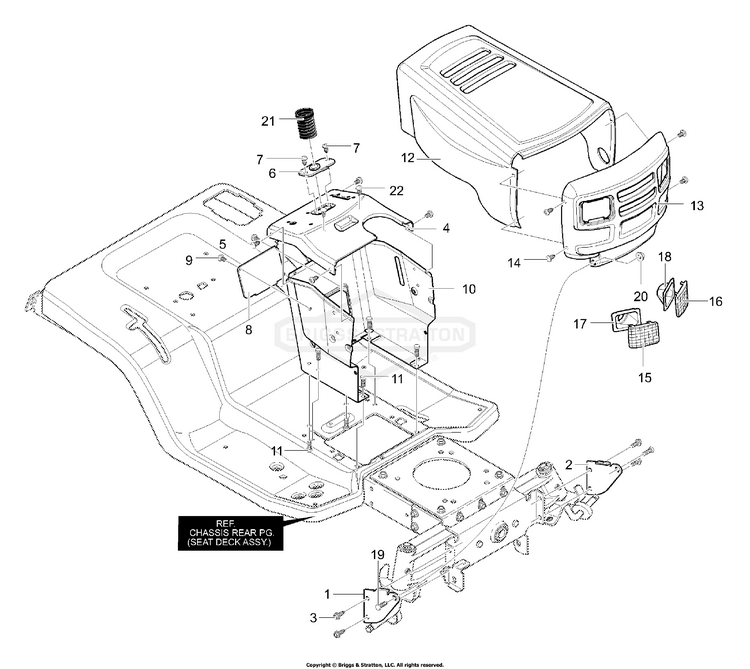

Chassis & Hood Assembly

...
...
1
Support, Grille RH BS-94082-853
...
2
Support, Grille LH BS-94083-853
...
3
Screw, 5/16-18 x 0.75 BS-711606MA
...
4
Dash BS-94074-860
...
5
Screw, 10-24x.500 BS-711629
...
6
Steering Bracket BS-094075
...
7
Screw, 1/4-14x.50 BS-710197
...
8
Accesss Panel BS-95366-860
...
9
Screw, 10-24x.500 BS-711629
...
10
Dash Support BS-95318-860
...
11
Screw, 5/16-18 x 0.75 BS-711606MA
...
12
Hood BS-690608-860
...
13
Grille BS-94079-860
...
14
Screw, 10-24x.500 BS-711629
...
15
Lens, RH BS-094080MA
...
16
Lens, LH BS-094081MA
...
17
Reflector, Headlight BS-094807
...
18
Reflector, Headlight BS-094807
...
19
Bolt, Shoulder BS-711611
...
20
Nut, 3/8-16 Hwdfllk Whiz BS-711622
...
21
Bellows, Steering Post BS-092059MA
...
22
Bumper BS-094744
...
--
Decal, Murray 145/102 RH Hood BS-712600
...
--
Decal, Murray 145/102 LH Hood BS-712599
...
--
Decal, Murray Bagger Top BS-710742
...
--
Instruction Book & Parts List BS-F-000739J
