40373x51B Murray - Lawn Tractor (2000)

Model: 40373x51B

Back To Assemblies

Save Part Not Listed?
product name

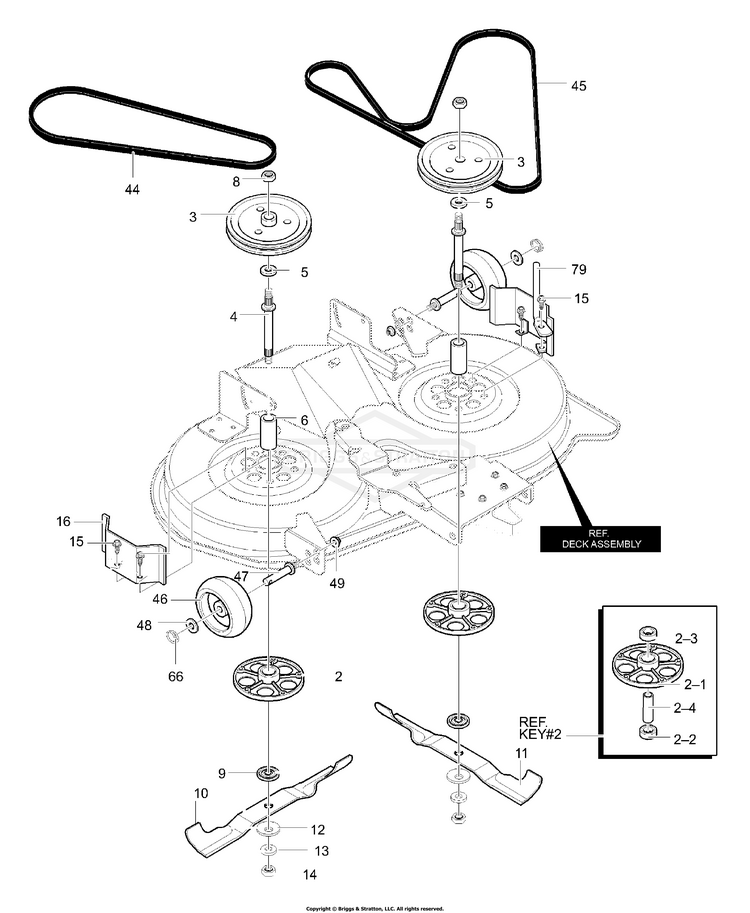

Deck Assembly (part 2)

...
...
2
Assembly, Jackshaft Housing BS-094305
...
2-1
Housing, Jackshaft BS-94282MA
...
2-2
Bearing, Lower Jackshaft BS-092282MA
...
2-3
Bearing, Upper Jackshaft BS-092281MA
...
2-4
Spacer BS-090904MA
...
3
Pulley, Deck BS-690020MA
...
4
JACKSHAFT BS-491922MA
...
5
Flatwasher BS-17X165MA
...
6
Spacer BS-091903MA
...
8
Nut, 9/16-18 BS-711910
...
9
Adapter, Deck BS-94207MA
...
10
SHIELD-CYLINDER BS-698454
...
11
Blade, RH BS-690500
...
12
Washer, Bellville BS-17X166MA
...
13
Flatwasher BS-17X165MA
...
14
Nut, 9/16-18 BS-711910
...
15
Screw, 3/8-16 x 1.00 BS-711911
...
16
Pulley Cover BS-94288-853
...
44
Belt, V 46.5LG BS-710231
...
45
Belt, Deck BS-690071
...
46
Gauge Wheel BS-092683MA
...
47
Shoulder Bolt BS-711746
...
48
Flatwasher BS-711615MA
...
49
Nut, 3/8-16 BS-711622
...
66
Ring, Locking BS-031X11MA
...
79
Rod, Belt Guide BS-95280
