40370x50B Murray - Lawn Tractor (2000)

Model: 40370x50B

Back To Assemblies

Save Part Not Listed?
product name

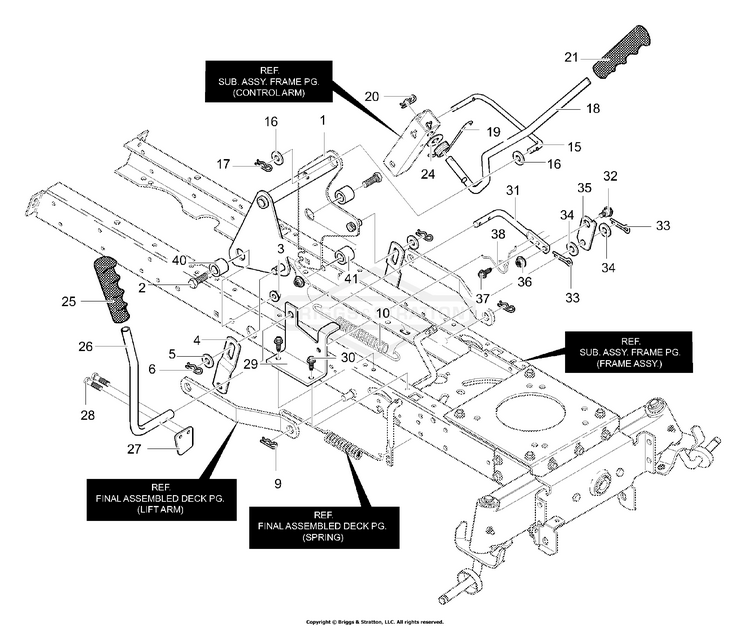

Mower Suspension Assembly

...
...
1
Assembly, Lift Arm BS-95233-821
...
2
Screw, 1/2-13x1.50 BS-711917MA
...
3
Nut, 1/2-13 Lock BS-711918
...
4
Bracket. Lift Link BS-94262-821
...
5
Washer, Flat BS-711617
...
6
Hair Pin BS-711676
...
9
Hair Pin BS-711676
...
10
Spring, Extension BS-710235
...
15
Link-Lift Handle BS-711981
...
16
Washer, Flat BS-711617
...
17
Hair Pin BS-711676
...
18
Handle, Lift BS-690532
...
19
Torsion Spring BS-710111
...
20
Hair Pin BS-711676
...
21
Grip, Lift BS-94506
...
24
Washer, Flat BS-711616
...
25
Grip BS-94505
...
26
PTO Handle BS-690126
...
27
PADDLE-SWITCH BS-094022ZMA
...
28
Screw, Thread Form BS-711621MA
...
29
Bracket, PTO BS-94018-821
...
30
SCREW, 5/16-18X.5 BS-703985
...
31
Lever, PTO BS-95283MA
...
32
Bolt, Shoulder 3/8-16 BS-711613MA
...
33
Hair Pin BS-711659
...
34
Washer, Flat BS-711615MA
...
35
Link PTO BS-95282
...
36
Nut, 3/8-16 BS-711622
...
37
Screw 5/16-18x.75 BS-711606MA
...
38
Torsion Spring BS-710141
...
40
Spacer BS-94309
...
41
Spacer, Sleeve BS-56150MA
