40370x50B Murray - Lawn Tractor (2000)

Model: 40370x50B

Back To Assemblies

Save Part Not Listed?
product name

Motion Drive

...
...
2
Screw, 5/16-18 x 2.50 BS-711669
...
3
Nut, 5/16-18 BS-711634MA
...
4
Bracket, Stabilizer Hydro BS-94224-821
...
5
Screw, 5/16-18 x 1.00 BS-711893
...
6
Screw, 5/16-18 x 0.75 BS-710268
...
9
Pedal Assy. Hydro BS-690134-821
...
10
Rod, Foot Control BS-690018
...
12
Bracket, Shift BS-323212
...
13
Washer, Transaxle BS-711895
...
14
NUT BS-712174
...
15
Spring - Transaxle Disconnect BS-94622MA
...
16
Spring BS-326780MA
...
17
Bracket, Disconnect Lever BS-94621-821
...
18
Bolt, HHSH 5/16-18 BS-711896
...
19
Spring, Brake BS-95424
...
20
Washer, Flat BS-711921
...
21
Rod, Clutch BS-690016
...
22
Pin, Clevis BS-711903
...
23
Latch, Park Brake BS-95290
...
26
BEARING - BALL BS-711522
...
28
Rod, Disconnect BS-690015
...
29
KIT, Carburetor Overhaul BS-695157
...
31
Screw, 3/8-16 x 1.25 BS-711905MA
...
32
Key, Square BS-52928MA
...
33
SCREW BS-95531GS
...
35
Assy, Idler Arm Traction BS-94238-821
...
36
Washer, Flat BS-711758
...
37
Washer, Flat BS-711904
...
38
Screw, 3/8-16 x 1.25 BS-711905MA
...
39
Spacer BS-95274MA
...
40
Pulley, Idler BS-690409MA
...
41
Nut, 3/8-16 BS-711920MA
...
42
Belt, V 4L 112.75 BS-94609MA
...
43
SCREW BS-95531GS
...
44
Park Brake Rod BS-690046MA
...
45
Nut, 5/16-18 Adjusting BS-711898
...
46
Spacer BS-690369MA
...
47
Adjust Nut 1/2-13 BS-711594
...
48
E-Ring BS-710103
...
49
Pin, Hair BS-711659
...
50
Pin, Hair BS-711676
...
53
Pin, Cotter BS-071081
...
54
Pin, Cotter BS-071081
...
55
Tire & Rim BS-692511
...
55-1
Valve Stem BS-338512
...
55-2
Rim BS-338524
...
55-3
Tire BS-338525
...
58
Bracket, Stabilizer Assy. BS-94225-821
...
59
Bolt, 5/16-18x.75 Carr. BS-711688MA
...
60
Nut, 5/16-18 Hexwdfllk Whiz BS-710026
...
61
Flatwasher BS-711894
...
62
Nut, 1/4-20 BS-710026
...
63
Screw Guide BS-711745
...
64
Nut, 5/16-18 Hexwdfllk BS-710026
...
65
SCREW, 1/4-20X .50 HH BS-313686MA
...
66
Retainer, Wire BS-711742
...
67
NUT, 1/4-20, GR5 BS-703233
...
68
Pad, Speed Control Pedal BS-094516
...
69
Pad, Toe Sandpaper BS-093249
...
70
Cap, Dump Valve Rod BS-335980
...
71
PIN, 3/32 X 1.6 BS-703300
...
--
HUB CAP BS-094618MA

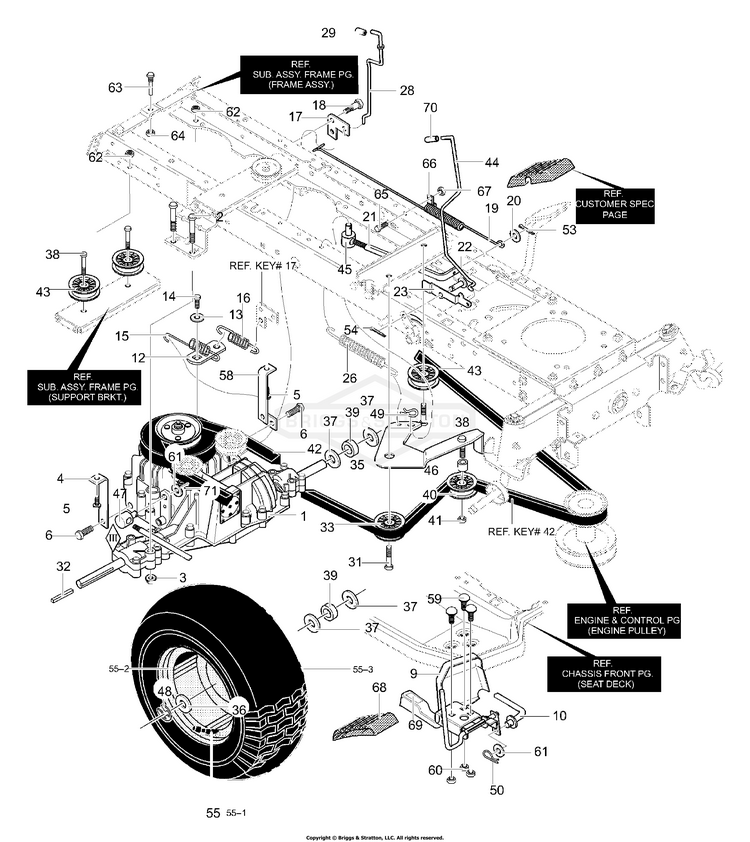

Schematic Image Zoomed
