40370x50B Murray - Lawn Tractor (2000)

Model: 40370x50B

Back To Assemblies

Save Part Not Listed?
product name

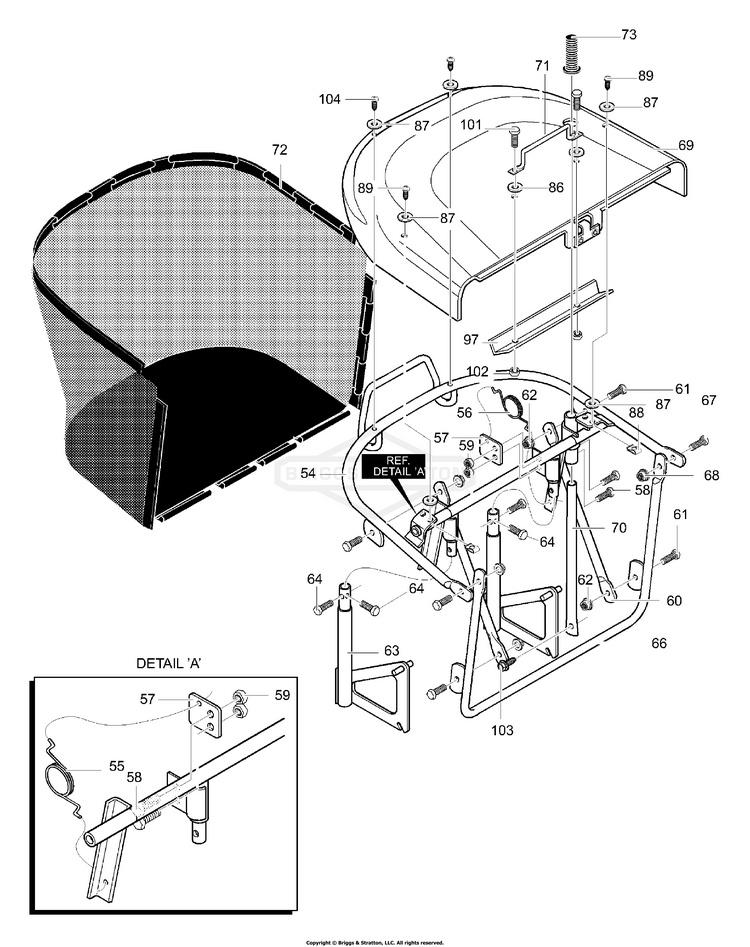

Grass Bagger Assembly

...
...
54
Asm. Weld Upper Frame BS-690044-821
...
55
Spring, Torsion RH BS-690003
...
56
Spring, Torsion LH BS-690004
...
57
Bracket, Spring Collector BS-95339-821
...
58
SCREW, 1/4-20X .50 HH BS-313686MA
...
59
Nut, 1/4-20 BS-73826
...
60
Brace, Frame Collector BS-94850-821
...
61
Screw, 1/4-20x.62 BS-711909
...
62
Nut, 1/4-20 BS-711632
...
63
Weld Asm. Support Collector BS-95343-821
...
64
Screw, 1/4-20x1.50 BS-711653
...
66
Weld Asm. Front Frame Collect BS-95349-821
...
67
Screw, 1/4-20x.62 BS-711909
...
68
Nut, 1/4-20 BS-711632
...
69
Top Collector Assembly BS-94908-860
...
70
Handle, Dump Collector BS-690019
...
71
Handle, Reba Collector BS-690506-821
...
72
Reba Collector Bag BS-95389MA
...
73
Rubber Grip BS-94854MA
...
86
Washer BS-712129
...
87
Washer BS-711921
...
88
Nut, 1/4-20 Tinnerman BS-578107
...
89
Screw, 1/4-20x.63 BS-711674MA
...
97
Brace, Bagger BS-690010-821
...
101
Screw, 1/4-20x1.50 BS-712068
...
102
Nut, 1/4-20 BS-711632
...
103
Screw, #12x.50 BS-711741
...
104
Screw, #12x.50 BS-711741
