40370x50B Murray - Lawn Tractor (2000)

Model: 40370x50B

Back To Assemblies

Save Part Not Listed?
product name

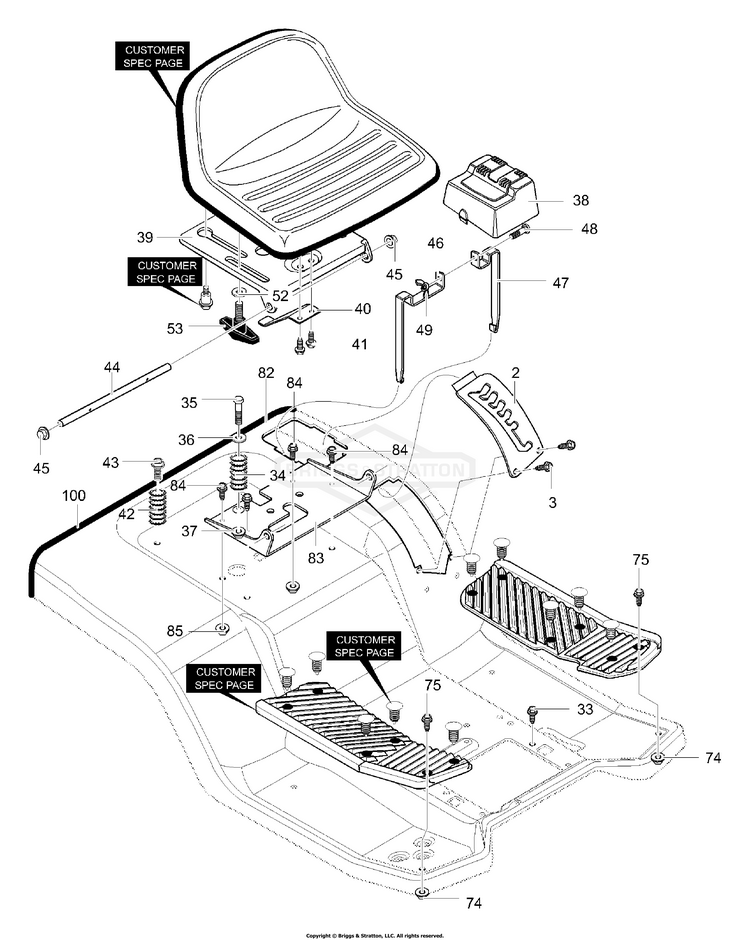

Rear Chassis Assembly (part 2)

...
...
2
Plate, Lift Detent BS-95190-821
...
3
Screw, #12x.50 BS-711741
...
33
Screw, 5/16-18 x 0.75 BS-711606MA
...
34
Spring, Compression BS-710136-821
...
35
Shoulder Bolt 1/4-20 BS-711610
...
36
Zinc Washer Cup BS-95293
...
37
Nut, 1/4-20 Centerlock BS-302635
...
38
Cover, Battery BS-94200MA
...
39
Support, Seat BS-94154-860
...
40
Spring - Leaf BS-094057MA
...
41
Screw, 1/4-20x.50 BS-711592
...
42
Spring, Compression BS-710109-821
...
43
Screw, 5/16-18 x 0.75 BS-711606MA
...
44
Hinge Seat Pivot BS-95294
...
45
Nut, Push Cap BS-711627MA
...
46
Battery Bracket, LH BS-95393-821
...
47
Battery Bracket, RH BS-95394-821
...
48
PIN, HAIR BS-711682
...
49
Nut, Wing 1/4-20 BS-711636
...
52
Washer, Flat BS-711644MA
...
53
Bolt, Wing 5/16-18x.50 BS-711747MA
...
74
Nut, 5/16-18 BS-710026
...
75
Bolt, Carriage 5/16-18x.75 BS-711891
...
82
Seat Deck Pedal Hydro BS-94311-860
...
83
Bracket, Pivot Seat BS-94153-860
...
84
Screw, 5/16-18 x 0.75 BS-711606MA
...
85
Nut, 5/16-18 BS-711634MA
...
100
Trim 41.00 Inches BS-095105
