40320x88 Murray - Lawn Tractor (2000)

Model: 40320x88

Back To Assemblies

Save Part Not Listed?
product name

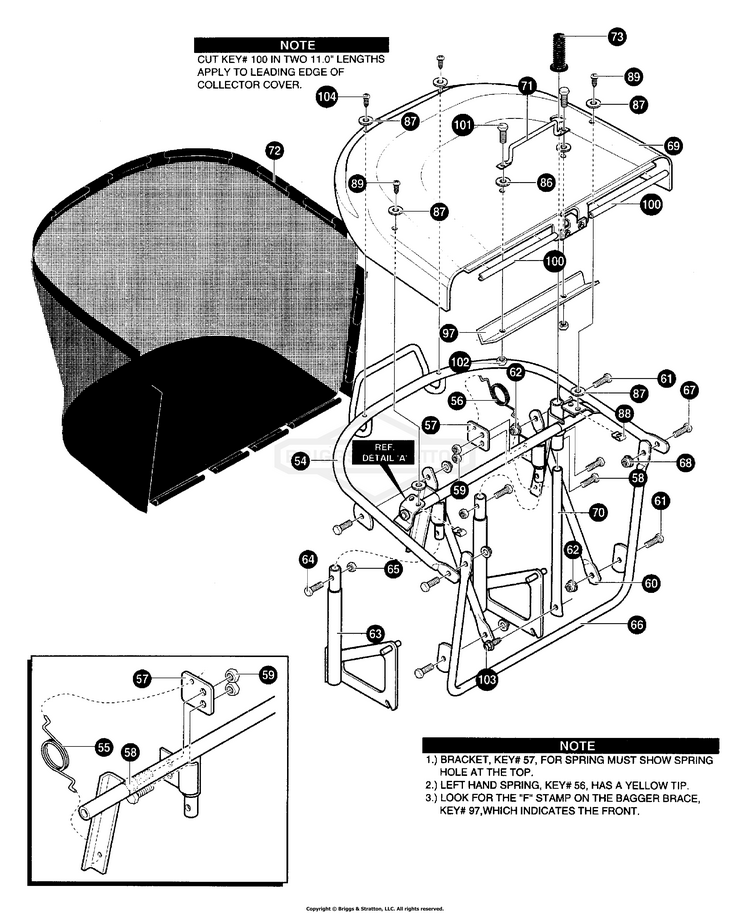

Grass Bagger

...
...
54
ASM. WELD UPPER FRAME BS-690044-853
...
55
SPRING, TORSION RH BS-690003
...
56
SPRING, TORSION LH BS-690004
...
57
BRACKET, SPRING COLLECTOR BS-95339-853
...
58
SCREW, 1/4-20X.50 HHC BS-180016MA
...
59
NUT, 1/4-20 BS-703251
...
60
BRACE, FRAME COLLECTOR BS-94850-853
...
61
SCREW, 1/4-20X.62 HHC BS-711909
...
62
NUT, 1/4-20HEXNYL BS-711632
...
63
WELD ASM., SUPPORT COLLECTOR BS-95343-853
...
64
SCREW, 1/4-20X1.50 BS-180034MA
...
65
NUT, 1/4-20 BS-703251
...
66
WELD ASM., FRONT FRAME COLLECT. BS-95349-853
...
67
SCREW, 1/4-20X.62 HHC BS-711909
...
68
NUT, 1/4-20 HEXNYL BS-711632
...
69
TOP COLLECTOR ASM. BS-94908-848
...
70
PIN, Retainer BS-691679
...
71
HANDLE, REBA COLLECTOR BS-94855-853
...
72
REBA COLLECTOR BAG BS-95389MA
...
73
RUBBER GRIP BS-94854MA
...
86
WASHER, .281X1.25X.06 BS-712129
...
87
WASHER, .328X1.06X.062 BS-711921
...
88
NUT, 1/4-20 TINN U BS-578107
...
89
SCREW, 1/4-20X.63 PHPNHD BS-711674MA
...
97
BRACE, BAGGER BS-690010-853
...
100
TRIM 77.5 INCHES BS-55023
...
101
SCREW 1/4-20X1.50 PHPNHD BS-712068
...
102
NUT, 1/4-20 HEXNYL BS-711632
...
103
SCREW, 10-24X.38 SLHWATAP BS-710266
...
104
SCREW, #12X.50 PHPNHTAP BS-711741
