40319x98B Murray - Lawn Tractor (2000)

Model: 40319x98B

Back To Assemblies

Save Part Not Listed?
product name

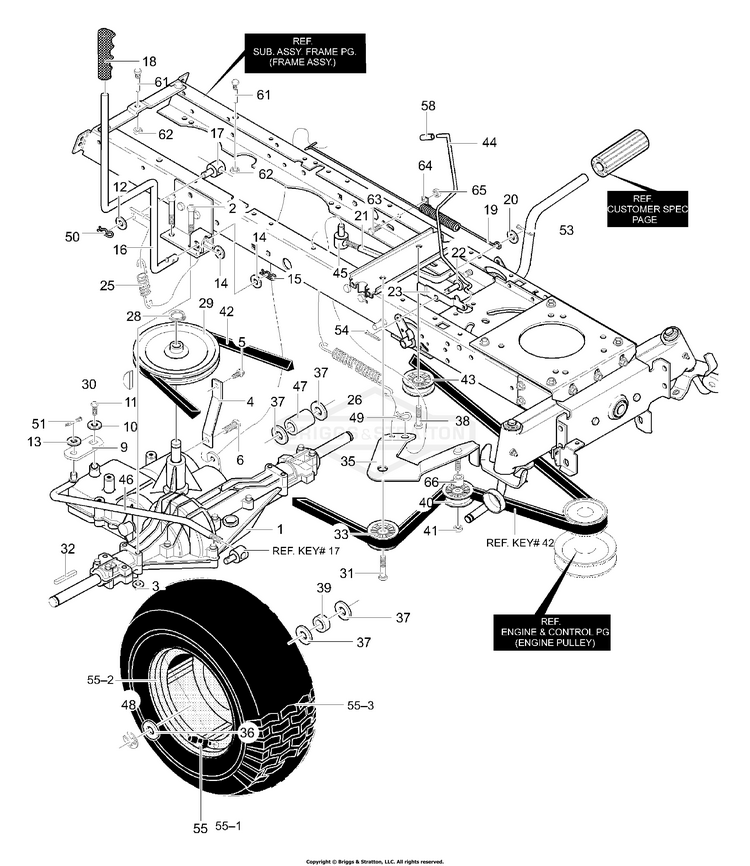

Motion Drive

...
...
2
Screw, 5/16-18 x 2.50 BS-711669
...
3
Nut, 5/16-18 BS-711634MA
...
4
Bracket, Stabilizer BS-94620-853
...
5
Screw, 5/16-18 x 0.75 BS-711606MA
...
6
Screw, 5/16-18 x 0.75 BS-710268
...
9
Bracket, Shift BS-94227
...
10
Washer, Transaxle BS-711895
...
11
Screw, 1/4-28x.750 BS-01X145MA
...
12
Washer, Flat BS-583409MA
...
13
Washer BS-71072
...
14
Flatwasher BS-711894
...
15
Hair Pin BS-711899
...
16
Shift Lever BS-690087
...
17
Nut, Adjust BS-711591
...
18
GRIP .50 DELUXE- BLAC BS-094497MA
...
19
Spring, Brake BS-95424
...
20
Washer, Flat BS-711921
...
21
Rod, Clutch BS-690016
...
22
Pin, Clevis BS-711903
...
23
Latch, Park Brake BS-95290
...
25
Spring BS-782223MA
...
26
BEARING - BALL BS-711522
...
28
Ring, Ret BS-0011X7MA
...
29
Pulley, 9.0 ODV4L BS-94571
...
30
KEY, HI-PRO 606 .75D BS-50795MA
...
31
Screw, 3/8-16 x 1.25 BS-711905MA
...
32
Key, Square BS-52928MA
...
33
SCREW BS-95531GS
...
35
Assy, Idler Arm Traction BS-94238-853
...
36
Washer, Flat BS-711758
...
37
Washer, Flat BS-711904
...
38
Screw, 3/8-16 x 1.25 BS-711905MA
...
39
Spacer BS-95418MA
...
40
Pulley, Idler BS-690409MA
...
41
Nut, 3/8-16 BS-711920MA
...
42
Belt, V 4L 114.12 BS-94608MA
...
43
SCREW BS-95531GS
...
44
COVER, Crankcase BS-699672
...
45
Nut, 5/16-18 Adjusting BS-711898
...
46
Rod, Shift Link BS-690027
...
47
Spacer BS-95419
...
48
RING, E .750D .050T BS-0011X3MA
...
49
Pin, Hair BS-711659
...
50
PIN, 3/32 X 1.6 BS-703300
...
51
Pin, Cotter BS-071081
...
53
Pin, Cotter BS-071081
...
54
Pin, Cotter BS-071081
...
55
Tire & Rim BS-692290
...
55-1
Valve Stem BS-338512
...
55-2
Rim BS-338524
...
55-3
Tire BS-338526
...
58
Cap, Dump BS-335980
...
61
Screw Guide BS-020619MA
...
62
Nut, 1/4-20 BS-710026
...
63
SCREW, 1/4-20X .50 HH BS-313686MA
...
64
Retainer BS-711742
...
65
NUT, 1/4-20, GR5 BS-703233
...
66
Spacer 1/2 to 17MM BS-690369MA
...
--
HUB CAP BS-094618MA
Schematic Image Zoomed
