40319x98B Murray - Lawn Tractor (2000)

Model: 40319x98B

Back To Assemblies

Save Part Not Listed?
product name

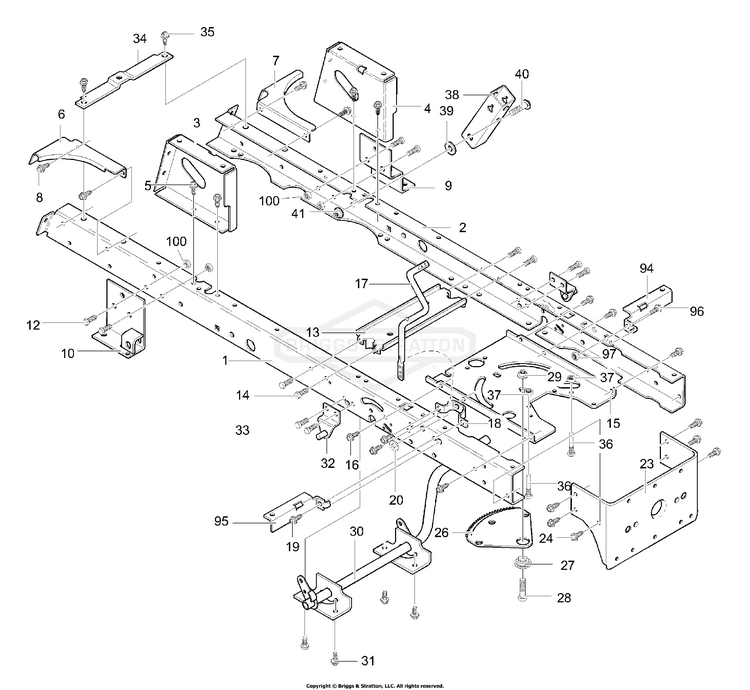

Frame Assembly (part 1)

...
...
1
Frame, Rail RH BS-94564
...
2
SCREW BS-592244
...
3
Support, Seat RH BS-94634
...
4
Support, Seat LH BS-94633
...
5
Screw, .312-18x.75 BS-26X249MA
...
6
Brace, Back Plate RH BS-94561
...
7
Brace, Back Plate LH BS-94562
...
8
Screw, 5/16-18 x 0.75 BS-26X249MA
...
9
Bracket, T/A RH VST LH MST BS-94234
...
10
Assy., Shift Brace BS-95396
...
12
Screw, .312-18x.75 BS-26X249MA
...
13
Assy., Idler Mount, Front BS-94237
...
14
Screw, .312-18x.75 BS-26X249MA
...
15
Plate, Steering BS-690551
...
16
Screw, .312-18x.75 BS-26X249MA
...
17
Crank, PTO BS-690394
...
18
Bracket, Bell Crank BS-94005
...
19
Screw, .312-18x.75 BS-26X249MA
...
20
Washer, Flat BS-120395
...
23
Bracket, Hanger Rear BS-94013
...
24
Screw, .312-18x.75 BS-26X249MA
...
26
Gear, Sector BS-094121MA
...
27
Bearing, Sector Gear BS-094123MA
...
28
BOLT BS-5025011X8FS
...
29
Nut, 5/16-18 BS-15X113MA
...
30
Clutch/Brake Pedal BS-94241
...
31
Screw, .312-18x.75 BS-26X249MA
...
32
Bracket, Suspension Asm. BS-94285
...
33
Screw, .312-18x.75 BS-26X249MA
...
34
Brace, Rail BS-94566
...
35
Screw, .312-18x.75 BS-26X249MA
...
36
GUIDE SCREW - ZINC BS-093349MA
...
37
NUT, 5/16-18, GR5 BS-703409
...
38
Bracket, Pivot BS-094015
...
39
Washer, Flat BS-000845
...
40
Bolt, Shoulder 3/8-16 BS-009X53MA
...
41
NUT, CNTR LCK, 3/8-16 BS-703893
...
94
Bracket, Seat Deck LH BS-690036
...
95
Bracket, Seat Deck RH BS-690035
...
96
Screw, .312-18x.75 BS-26X249MA
...
97
NUT, 5/16-18, GR5 BS-703409
...
100
NUT, HEX FLNG,5/16-18 BS-704067
