40319x98B Murray - Lawn Tractor (2000)

Model: 40319x98B

Back To Assemblies

Save Part Not Listed?
product name

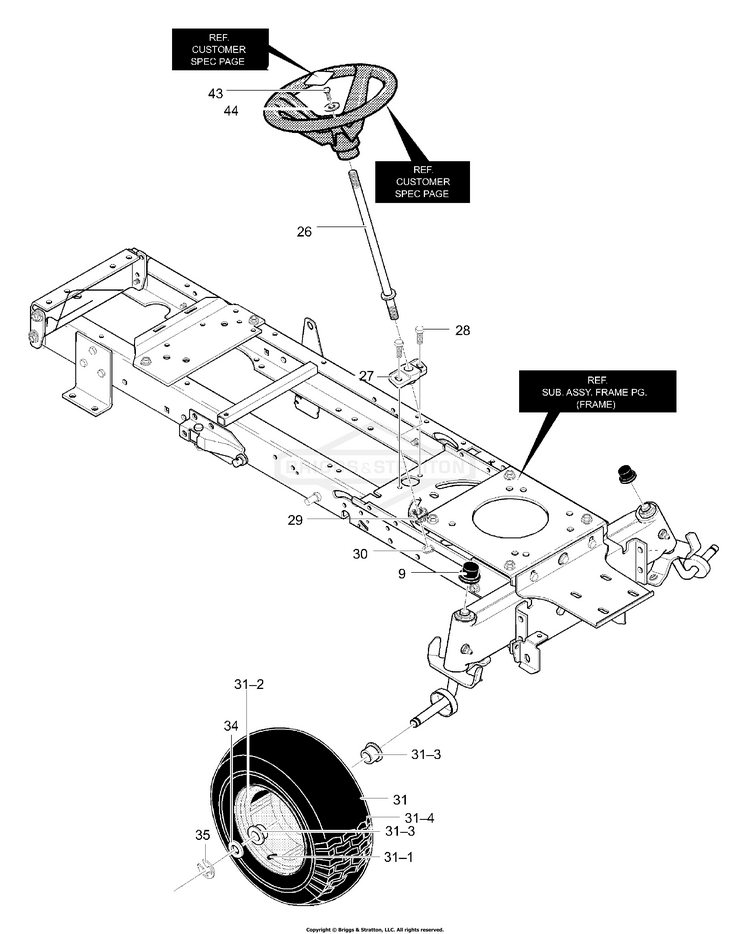

Steering

...
...
9
HUB CAP BS-094618MA
...
26
Shaft, Steering BS-094520
...
27
Bearing-Lower BS-094124MA
...
28
Screw, 5/16-18 x 0.75 BS-711606MA
...
29
Gear, Pinion BS-094122
...
30
Retaining Ring BS-710102
...
31
Tire & Rim BS-690049
...
31-1
Valve Stem BS-338512
...
31-2
Rim BS-338517MA
...
31-3
Bearing BS-338513
...
31-4
Tire BS-338516
...
34
Flatwasher BS-711758
...
35
RING, E .750D .050T BS-0011X3MA
...
43
Screw, 1/4-20x.75 BS-711719
...
44
Flatwasher BS-711663MA
...
--
HUB CAP BS-094618MA
