40318x50A Murray - Lawn Tractor (1999)

Model: 40318x50A

Back To Assemblies

Save Part Not Listed?
product name

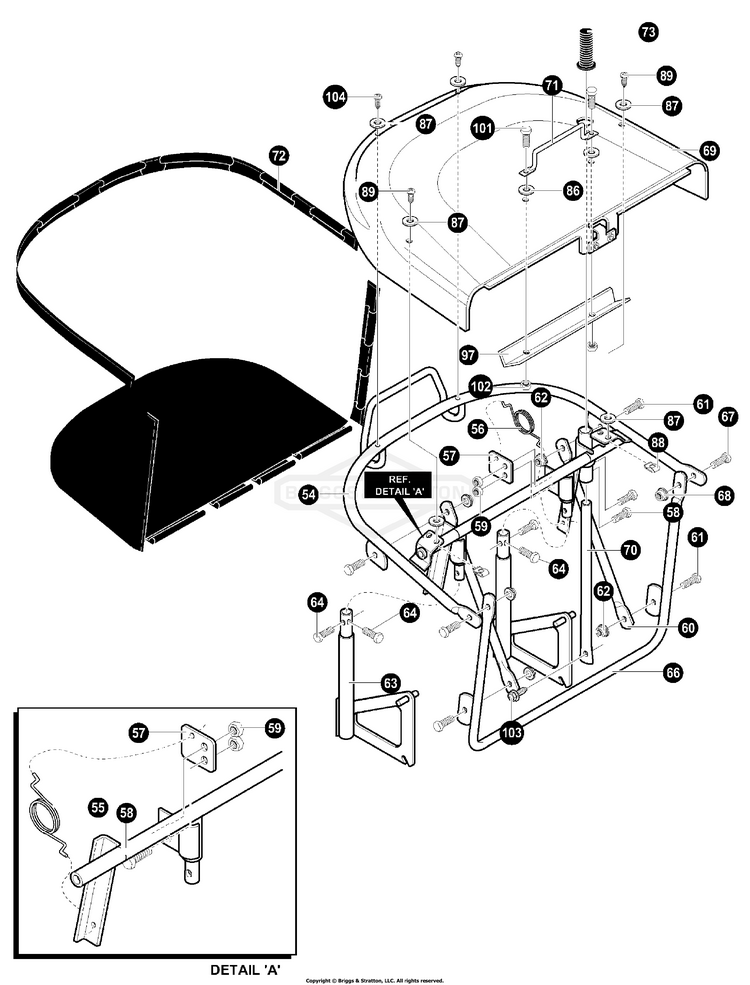

Rear Chassis Assembly (part 3)

...
...
54
ASM. WELD UPPER FRAME BS-690044-821
...
55
SPRING, TORSION RH BS-690003
...
56
SPRING, TORSION LH BS-690004
...
57
BRACKET, SPRING COLLECTOR BS-95339-821
...
58
SCREW, 1/4-20X .50 HH BS-313686MA
...
59
NUT, 1/4-20 REGHEXCTRLK BS-73826
...
60
BRACE, FRAME COLLECTOR BS-94850-821
...
61
SCREW, 1/4-20X.62 HHC BS-711909
...
62
NUT, 1/4-20HEXNYL BS-711632
...
63
WELD ASM., SUPPORT COLLECTOR BS-95343-821
...
64
SCREW, 1/4-20X1.50 BS-711653
...
66
WELD ASM., FRONT FRAME COLLECT. BS-95349-821
...
67
SCREW, 1/4-20X.62 HHC BS-711909
...
68
NUT, 1/4-20 HEXNYL BS-711632
...
69
TOP COLLECTOR ASM. BS-94908-860
...
70
HANDLE, DUMP COLLECTOR BS-690019
...
71
HANDLE, REBA COLLECTOR BS-94855-821
...
72
REBA COLLECTOR BAG BS-95389MA
...
73
RUBBER GRIP BS-94854MA
...
86
WASHER, .281X1.25X.06 BS-712129
...
87
WASHER, .328X1.06X.062 BS-711921
...
88
NUT, 1/4-20 TINN U BS-578107
...
89
SCREW, 1/4-20X.63 PHPNHD BS-711674MA
...
97
BRACE, BAGGER BS-690010-821
...
101
SCREW 1/4-20X1.50 PHPNHD BS-712068
...
102
NUT, 1/4-20 HEXNYL BS-711632
...
103
SCREW, #12X.50 PHPNHTAP BS-711741
...
104
SCREW, #12X.50 PHPNHTAP BS-711741
