40318x50A Murray - Lawn Tractor (1999)

Model: 40318x50A

Back To Assemblies

Save Part Not Listed?
product name

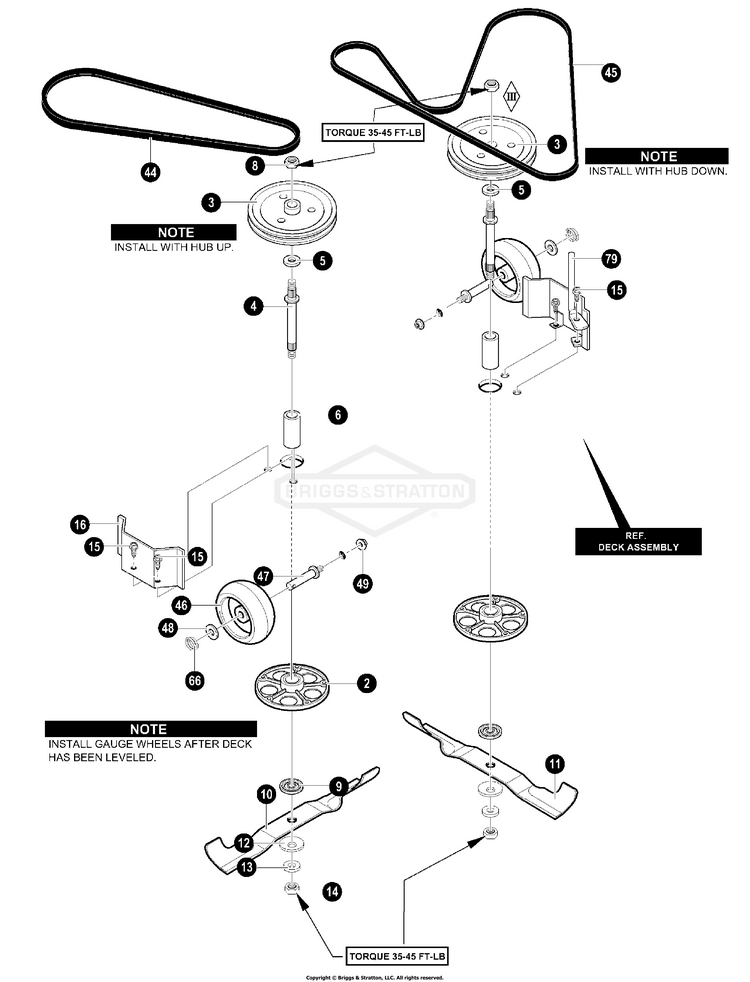

Deck Assembly (part 2)

...
...
2
ASSEMBLY, JACKSHAFT HOUSING BS-094305
...
3
PULLEY, DECK BS-690020MA
...
4
JACKSHAFT BS-491922MA
...
5
WASHER, FLAT BS-710117
...
6
SPACER, .625X.875X1.91 BS-091903MA
...
8
NUT, 9/16-18 BS-711910
...
9
ADAPTER, DECK/BLADE 40" BS-94207MA
...
10
SHIELD-CYLINDER BS-698454
...
11
BLADE, RH BS-690500
...
12
WASHER,BELLVILLE BS-710118
...
13
WASHER, FLAT BS-710117
...
14
NUT, 9/16-18 BS-711910
...
15
SCREW,3/8-16X1.00 BS-711911
...
16
COVER PULLEY BS-94288-821
...
44
BELT, V 46.5LG BS-710231
...
45
BELT, DECK BS-690071
...
46
GAUGE WHEEL BS-092683MA
...
47
BOLT, SHOULDER BS-711746
...
48
WASHER, FLAT BS-711615MA
...
49
NUT, 3/8-16 BS-711622
...
66
Ring, Locking BS-031X11MA
...
79
ROD, BELT GUIDE BS-95280
