40318x50A Murray - Lawn Tractor (1999)

Model: 40318x50A

Back To Assemblies

Save Part Not Listed?
product name

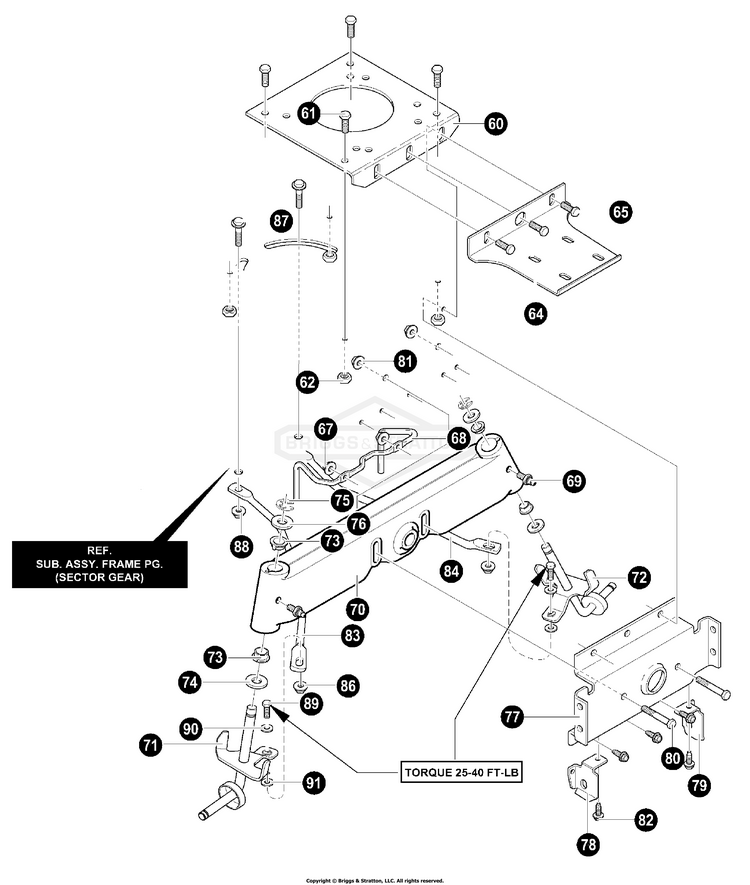

Frame Assembly (part 2)

...
...
60
ENGINE PLATE BS-94006
...
61
SCREW, 5/16-18 x 0.75 HHWATAP BS-710079
...
62
NUT, 5/16-18 WDFLLK 15X88 BS-710205
...
64
BRACKET, MUFFLER MOUNT BS-94901
...
65
SCREW, 5/16-18 x 0.75 HHWATAP BS-710079
...
67
NUT, 5/16-18 HEXWDFLLK WHIZ BS-45174
...
68
GUIDE-STACK PULLEY BELT BS-94310
...
69
ZERK, GREASE FITTING BS-706
...
70
AXLE, CAST MACHINED REBA BS-95405
...
71
SPINDLE, LONG RH BS-95182
...
72
SPINDLE, LONG LH BS-95183
...
73
BEARING, SPINDLE BS-092527MA
...
74
WASHER, .766IDX1.62ID BS-710129
...
75
E-RING .574IDX.050X.750SH 11X3 BS-710103
...
76
WASHER, FLAT .765 x 1.81 x .059 BS-710088
...
77
HANGER, AXLE BS-94007
...
78
HANGER, DECK RH BS-690199
...
79
HANGER, DECK LH BS-690198
...
80
SCREW, 5/16-18 x 3.00 BS-180113MA
...
81
NUT, 5/16-18 WDFLLK 15X88 BS-710205
...
82
SCREW, 5/16-18 x 0.75 HHWATAP BS-710079
...
83
DRAG LINK RH BS-95328
...
84
DRAG LINK LH BS-95329
...
86
NUT, 3/8-16 HWDFLLK MACK 15X84 BS-710140
...
87
SHOULDER BOLT 9X57 BS-710440
...
88
NUT, 3/8-16 HWDFLLK MACK 15X84 BS-710140
...
89
SCREW, 3/8-16 x 1.50 BS-710082
...
90
WASHER FLAT .391X1.00X.083 BS-710083
...
91
WASHER FLAT .406X.81X16GA BS-710142
