40318x50A Murray - Lawn Tractor (1999)

Model: 40318x50A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

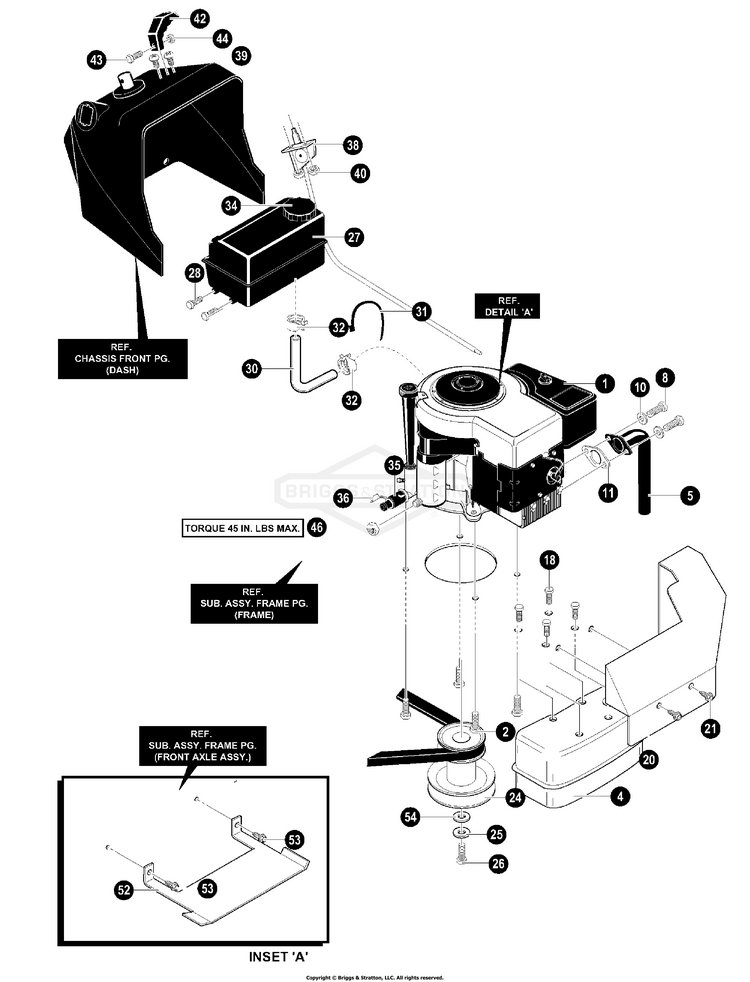

Engine & Control Assembly

...
...
1
13HP (See Engine Manual) BS-~ENGINE
...
2
SCREW, 3/8-16 x 1.25 BS-710199
...
4
SCREW BS-690859
...
5
EXHAUST PIPE BS-94900
...
8
SCREW, 5/16-18 x 0.75P BS-313676
...
10
WASHER, HVSPTLK .328 x . BS-313679
...
11
GASKET, Exhaust BS-692236
...
18
SCREW.25-20 S-T BS-26X263MA
...
20
HEAT SHIELD ASSY. BS-94904-821
...
21
SCREW, 5/16-18 x 0.75 HHWATAP BS-711606MA
...
24
O-RING, 1.8 X 8.7 BS-95383GS
...
25
WASHER, REGSPTLK .459X. BS-120383
...
26
SCREW, 7/16-20 NF1.50HH BS-710248
...
27
TANK, FUEL 1.5 GAL W/O SENSOR BS-309853MA
...
28
SCREW, 15TPIX. PAN BS-711681
...
30
GAS LINE BS-42258
...
31
CABLE TIE BS-57444
...
32
CLAMP, FUEL CLAMP BS-336890
...
34
GAS CAP 2.5 THROAT BS-12501MA
...
35
OIL DRAIN VALVE ASSEMBLY BS-325547MA
...
36
CAP, OIL DRAIN VALVE BS-327422
...
38
THROTTLE CONTROL BS-95370MA
...
39
SCREW, 10-24X.63 PHPNMA BS-711755MA
...
40
NUT, #10-24 HXHDNYLK BS-711754
...
42
STUD BS-691695
...
43
SCREW, #8-32X.38 PHPN BS-711750
...
44
NUT, #8-32 REGHX BS-711748
...
46
NUT, 1/4-20 REGHXJAM BS-711601
...
52
SHIELD, ANTI-DEHYDRATION BS-95192-821
...
53
SCREW, 5/16-18 x 0.75 HHWATAP BS-711606MA
...
54
WASHER, FLAT .480X1. BS-710247
