40316x11B Murray - Lawn Tractor (2000)

Model: 40316x11B

Back To Assemblies

Save Part Not Listed?
product name

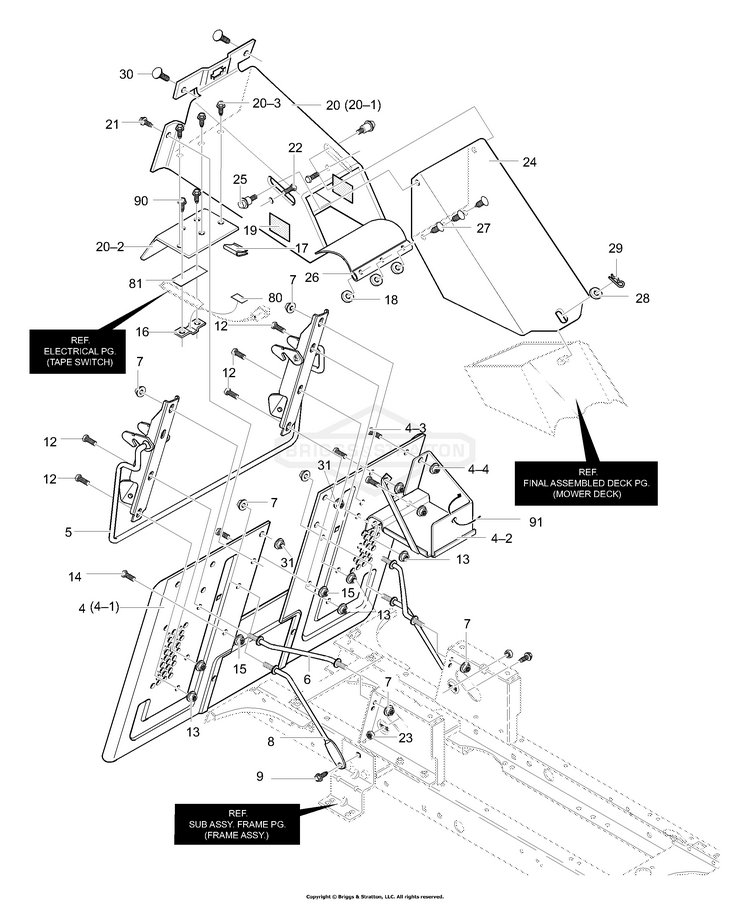

Rear Chassis Assembly (part 2)

...
...
4
ASSEMBLY, Back Plate/Battery BS-MU343678-853
...
4-1
ASSEMBLY Back Plate Flat BS-MU95162
...
4-2
Battery Tray Assembly BS-MU94563
...
4-3
SCREW, 5/16-18 x 0.50 BS-MU180073
...
4-4
NUT, 5/16-18 Hexwdfllk Whiz BS-MU45174
...
5
Weldment - Latch Lever BS-MU95359-853
...
6
ROD, Brace BS-MU690097
...
7
NUT, 3/8-16 Hwdfl Whiz-lock BS-MU711906
...
8
ROD, Brace BS-MU94231
...
9
SCREW, 5/16-18 x 0.75 BS-MU711606
...
12
SCREW, 5/16-18 x 0.75 BS-MU9357
...
13
NUT, 5/16-18 Hexwdfllk Whiz BS-MU710026
...
14
SCREW, 5/16-18 x 0.75 BS-MU711606
...
15
NUT, 5/16-18 Hexwdfllk Whiz BS-MU710026
...
16
BRACKET, Flex Switch Mounting BS-MU690245
...
17
Wire Clip, Adhesive BS-MU55939
...
18
FLATWASHER BS-MU711666
...
19
Pad, Adhesive BS-MU318197
...
20
T/A Shield & Upper Chute Assy BS-MU690102-853
...
20-1
CHUTE Weld Asm. Upper BS-MU94350
...
20-2
SHIELD, Transaxle BS-MU95367
...
20-3
SCREW, 1/4-20x.63 BS-MU711642
...
21
SCREW, 5/16-18 x 0.75 BS-MU711606
...
22
BOLT, Carriage 5/16-18x.75 BS-MU340720
...
23
NUT, 5/16-18 BS-MU710026
...
24
MIDDLE CHUTE ASSEMBLY BS-MU94296-853
...
25
BOLT, Shoulder BS-MU009X57
...
26
Flap, Chute BS-MU94264
...
27
FASTENER, Ratchet BS-MU309235
...
29
PIN, Hair BS-MU711682
...
30
BOLT, Carriage 5/16-18x.75 BS-MU340720
...
31
NUT, 5/16-18 BS-MU710026
...
80
Tape, Double Sided Foam 3/4" BS-MU712009
...
81
Tape, Double Sided Foam 3/4" BS-MU712009
...
90
SCREW, 1/4-20x.63 BS-MU711642
...
91
Cable Tie BS-MU57444
