4025A7-0224-E1 Briggs and Stratton Engine

Model: 4025A7-0224-E1

Back To Assemblies

Save Part Not Listed?
product name

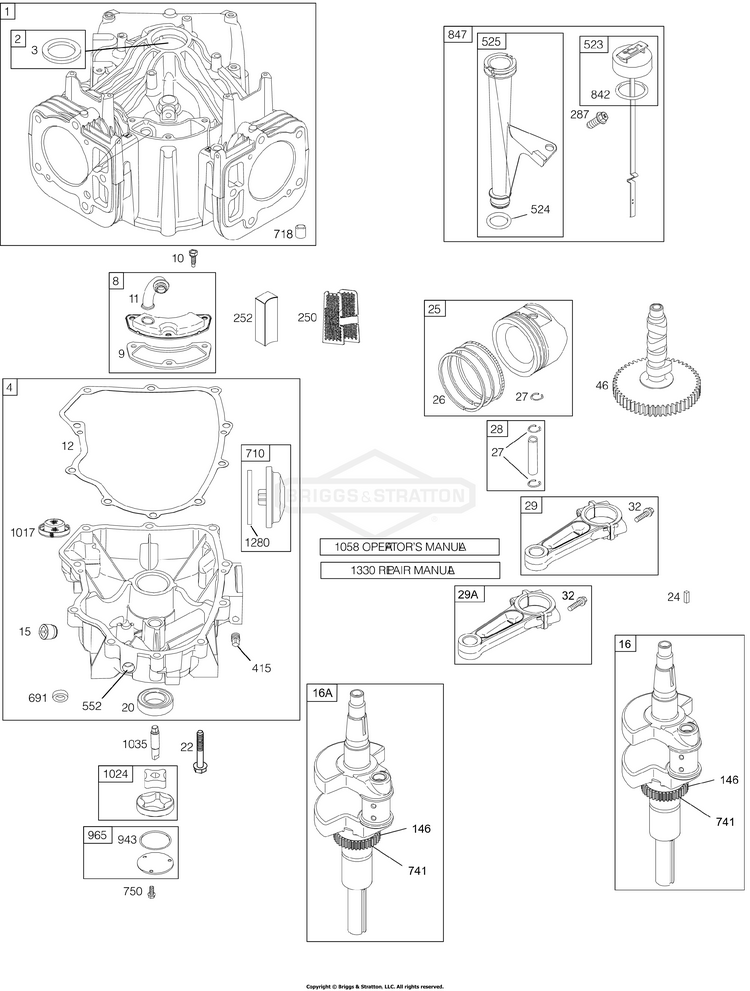

Camshaft, Crankshaft, Cylinder, Engine Sump, Lubrication, Piston, Rings, Connecting Rod

...
...
1
CYLINDER ASSEMBLY BS-84007741
...
2
KIT, Bushing/Seal (Magneto Side) BS-797673
...
3
SEAL, Oil (Magneto Side) BS-391086S
...
8
BREATHER ASSEMBLY BS-792185
...
9
GASKET, Breather BS-690937
...
10
SCREW (Breather Assembly) BS-691108
...
11
TUBE-BREATHER BS-792184
...
12
GASKET SET, Crankcase BS-594195
...
15
PLUG, Oil Drain BS-691680
...
16
CRANKSHAFT Used After Code Date 04010800 BS-595726
...
16A
CRANKSHAFT Used Before Code Date 04010900 BS-595726
...
20
SEAL, Oil (PTO Side) BS-795387
...
22
SCREW (Crankcase Cover/Sump) BS-694966
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY (Standard) BS-793647
...
25
PISTON ASSEMBLY (.020 Oversize) BS-793648
...
26
SET, Ring (.020 Oversize) BS-499606
...
26
SET, Ring (Standard) BS-499604
...
27
LOCK, Piston Pin BS-690975
...
28
PIN, Piston (Standard) BS-690229
...
29
ROD, Connecting (Standard) Used After Code Date 04010800 BS-84007297
...
32
SCREW (Connecting Rod) BS-690976
...
46
CAMSHAFT BS-797242
...
146
KEY, Woodruff BS-690979
...
250
RETAINER, Breather BS-690957
...
252
COLLECTOR-OIL BS-794389
...
287
SCREW (Dipstick Tube) BS-691108
...
415
PLUG (1/8 Standard) BS-794903
...
523
DIPSTICK BS-594528
...
524
SEAL, O-Ring BS-691032
...
525
TUBE, Dipstick BS-597129
...
552
BUSHING, Governor Crank BS-796638
...
691
SEAL, Governor Shaft BS-790574
...
710
COVER, Oil Filter BS-697474
...
718
PIN, Locating BS-690959
...
741
GEAR, Timing BS-690980
...
750
SCREW (Oil Pump Cover) BS-696999
...
842
SEAL, O-Ring (Dipstick Tube) BS-691031
...
847
DIPSTICK/TUBE ASSEMBLY BS-597130
...
943
SEAL, O-Ring (Oil Pump Cover) BS-690589
...
965
COVER, Oil Pump BS-499613
...
1017
SCREEN, Oil Pump BS-690770
...
1024
PUMP-OIL BS-794644
...
1035
PUMP-OIL BS-794644
...
1058
MANUAL, Operator's BS-276352
...
1280
SEAL, O-Ring (Oil Filter Cover) BS-697475
...
1319
LABEL, Warning BS-794467
...
1330
MANUAL, Repair BS-273521
