402447-1115-02 Briggs and Stratton Engine

Model: 402447-1115-02

Save Part Not Listed?

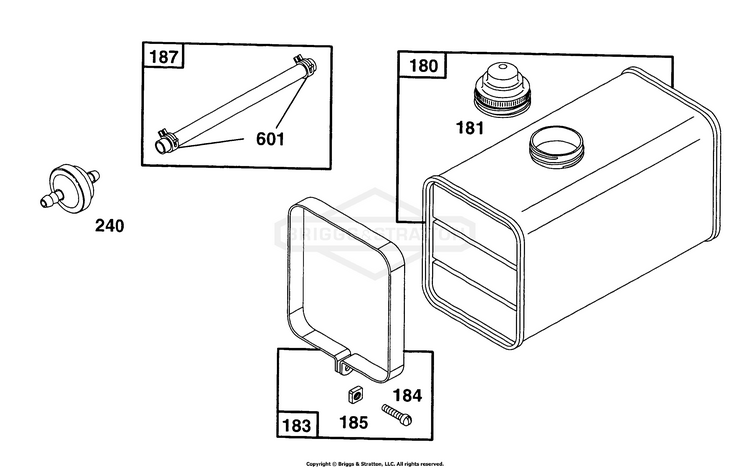

Fuel Tank and Parts

180

TANK, Fuel (8 Quart) BS-292415

181

CAP, Fuel Tank (Metal) BS-791545

183

STRAP, Fuel Tank (6 Quart) BS-691937

184

SCREW (1/4-20 X 1-1/2) BS-690280

185

NUT (1/4-20) BS-690279

187

LINE, Fuel (Cut To Required Length) BS-841589

187

GASKET, Breather Passage (Cylinder To Impulse Pump)(Cut To Required Length) BS-791760

240

FILTER, Fuel (Fuel Pump) BS-394358S

601

CLAMP, Hose (Green) BS-791850
