402437-1221-01 Briggs and Stratton Engine

Model: 402437-1221-01

Back To Assemblies

Save Part Not Listed?
product name

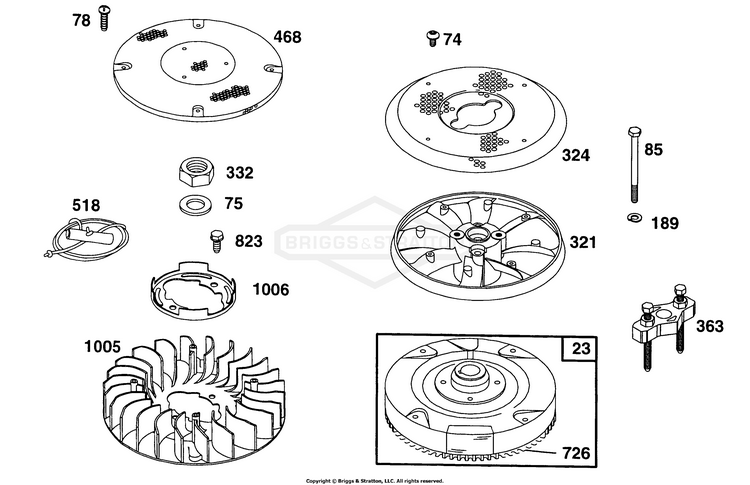

Flywheel, Screens

...
...
23
FLYWHEEL (9 Or 16 Amp) BS-690655
...
74
SCREW BS-691655
...
75
WASHER (Spring) BS-691056
...
78
SCREW (Tube) BS-691677
...
85
SCREW BS-690335
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
321
FAN, Booster Used Before Code Date 93011800 BS-690379
...
321
FAN-BOOSTER Used After Code Date 93011700 BS-690381
...
321
FAN, Booster Used After Code Date 93011700 BS-690382
...
324
SCREEN-ROTATING BS-690478
...
332
NUT BS-691059
...
363
PULLER, Flywheel BS-19203
...
468
SCREEN-ROTATING BS-692527
...
518
KIT, Handle/Rope BS-69932S
...
726
GEAR, Ring (Includes Mounting Hardware) BS-391362
...
823
SCREW (Fuel Tank) BS-691058
...
1005
FAN, Flywheel Used Before Code Date 93011800 BS-280815
...
1006
RETAINER, Fan Used Before Code Date 93011800 BS-690452
