38E347-0005-G1 Briggs and Stratton Engine

Model: 38E347-0005-G1

Back To Assemblies

Save Part Not Listed?
product name

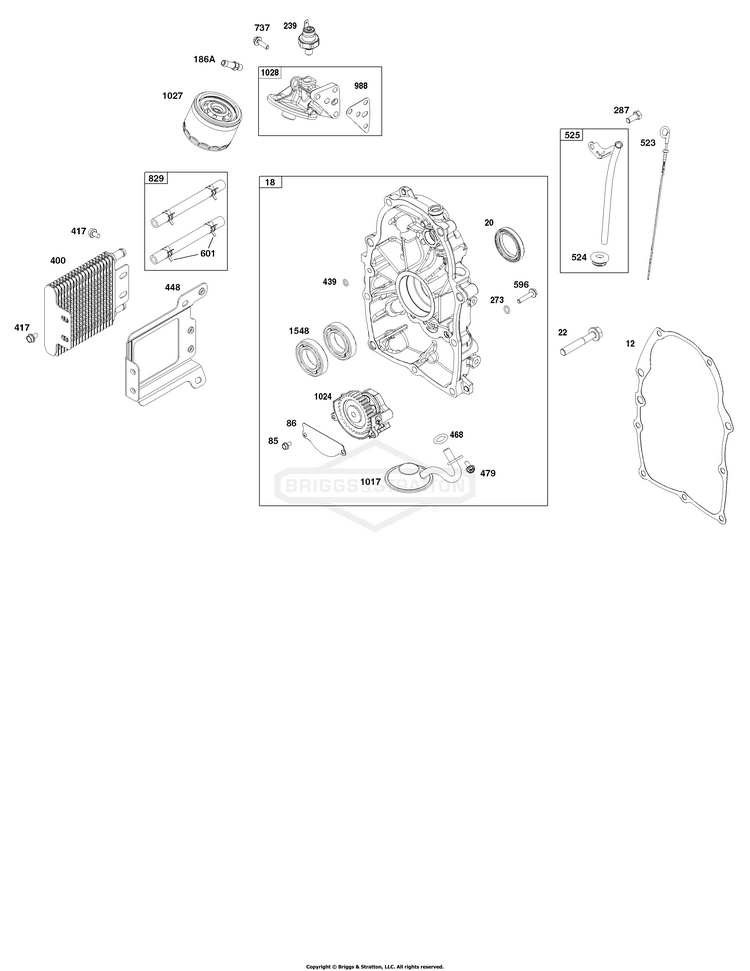

Crankcase Cover and Lubrication Group

...
...
12
GASKET, Crankcase BS-846487
...
18
COVER, Crankcase BS-844734
...
20
SEAL, Oil (PTO Side) BS-805049S
...
22
SCREW (Crankcase Cover/Sump) BS-807362
...
85
SCREW (Gear Cover)(M6x10mm) BS-841233
...
86
COVER, Gear BS-690745
...
186A
CONNECTOR, Hose BS-693184
...
239
SWITCH, Oil Pressure BS-841281
...
273
SEAL, O-Ring (Oil Pump) BS-690681
...
287
SCREW (Dipstick Tube) (M8x18mm) BS-806660
...
400
COOLER, Oil BS-846489
...
417
SCREW (Oil Cooler) BS-843345
...
439
O-RING, Oil Gallery (Part information located in Cylinder Group.) BS-692154
...
448
BRACKET, Oil Cooler BS-841488
...
468
SEAL, O-Ring (Oil Pump Screen) BS-690690
...
479
SCREW (Oil Pump Screen)(M6x14mm) BS-807084
...
523
DIPSTICK BS-693175
...
524
SEAL, O-Ring (Dipstick Tube) BS-693172
...
525
TUBE, Dipstick BS-693174
...
596
SCREW (Oil Pump)(M6x30mm) BS-691492
...
601
CLAMP, Hose BS-841597
...
737
SCREW (Oil Filter Adaptor)(M6x21mm) BS-690679
...
829
HOSE/CLAMP ASSEMBLY BS-841999
...
988
GASKET, Oil Adapter BS-692063
...
1017
SCREEN, Oil Pump BS-690900
...
1024
PUMP, Oil BS-843825
...
1027
FILTER, Oil BS-842921
...
1028
ADAPTER, Oil Filter BS-843898
...
1548
BEARING, Ball (Crankcase Cover/Sump) BS-843827
