38E347-0005-G1 Briggs and Stratton Engine

Model: 38E347-0005-G1

Back To Assemblies

Save Part Not Listed?
product name

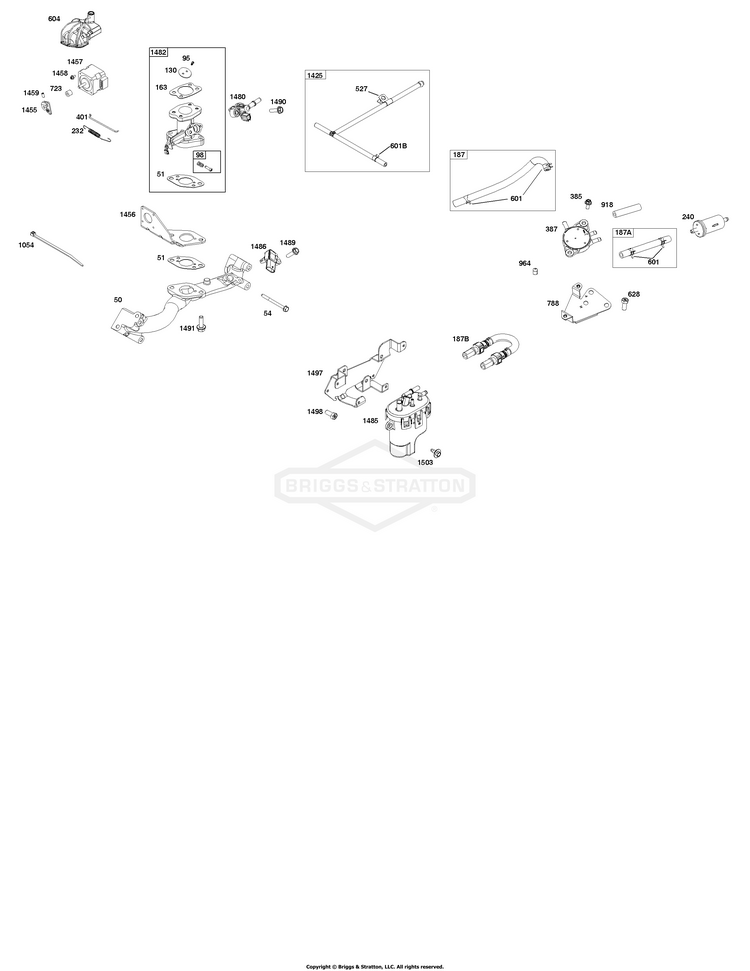

Throttle Body and Fuel Supply Group

...
...
50
MANIFOLD, Intake BS-847137
...
51
GASKET, Intake BS-691694
...
54
SCREW BS-806444
...
95
SCREW (Throttle Valve) (M3x5mm) BS-846644
...
98
KIT, Idle Speed BS-847139
...
130
VALVE, Throttle BS-847262
...
187
LINE, Fuel BS-846584
...
187A
LINE, Fuel BS-791766
...
187B
LINE, Fuel BS-847473
...
232
SPRING, Governor BS-847470
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) (M6x14mm) BS-807084
...
387
PUMP, Fuel BS-597338
...
401
LINK, Actuator BS-845814
...
527
CLAMP, Hose BS-845268
...
601
CLAMP, Hose BS-691038
...
601B
CLAMP, Hose BS-593879
...
604
COVER, Control BS-84001958
...
628
SCREW (Fuel Pump Bracket) (M8x18mm) BS-806660
...
723
SEAL, Foam BS-845818
...
788
BRACKET, Fuel Pump BS-691559
...
918
LINE, Fuel BS-84001964
...
964
CAP, Connector BS-590799
...
1503
SCREW (Fuel Module) (1/4-20x.5) BS-594618
...
1054
TIE, Cable (Part information located in Controls Group.) BS-280275
...
1425
HOSE, Purge Line BS-847556
...
1455
LEVER, Actuator BS-845813
...
1456
BRACKET, Mounting BS-845815
...
1457
MOTOR, STEPPER/BRACKET BS-84008479
...
1458
SCREW (Stepper Motor) (M3x8mm) BS-845812
...
1459
SCREW BS-845820
...
1480
INJECTOR, Fuel BS-846618
...
1482
BODY, Throttle BS-847138
...
1485
MODULE, Fuel BS-593890
...
1486
SENSOR, TEMPERATURE/PRESSURE BS-84013424
...
1489
SCREW (TEMP/MAP Sensor) (M6x21mm) BS-690679
...
1490
SCREW (Fuel Injector) (M6x21mm) BS-690679
...
1491
SCREW (Throttle Body) (M8x25mm) BS-807382
...
1497
BRACKET, Fuel Module BS-84001967
...
1498
SCREW (Fuel Module Bracket) (M4x10mm) BS-84001969
