38716x82A Murray - Lawn Tractor (1999)

Model: 38716x82A

Back To Assemblies

Save Part Not Listed?
product name

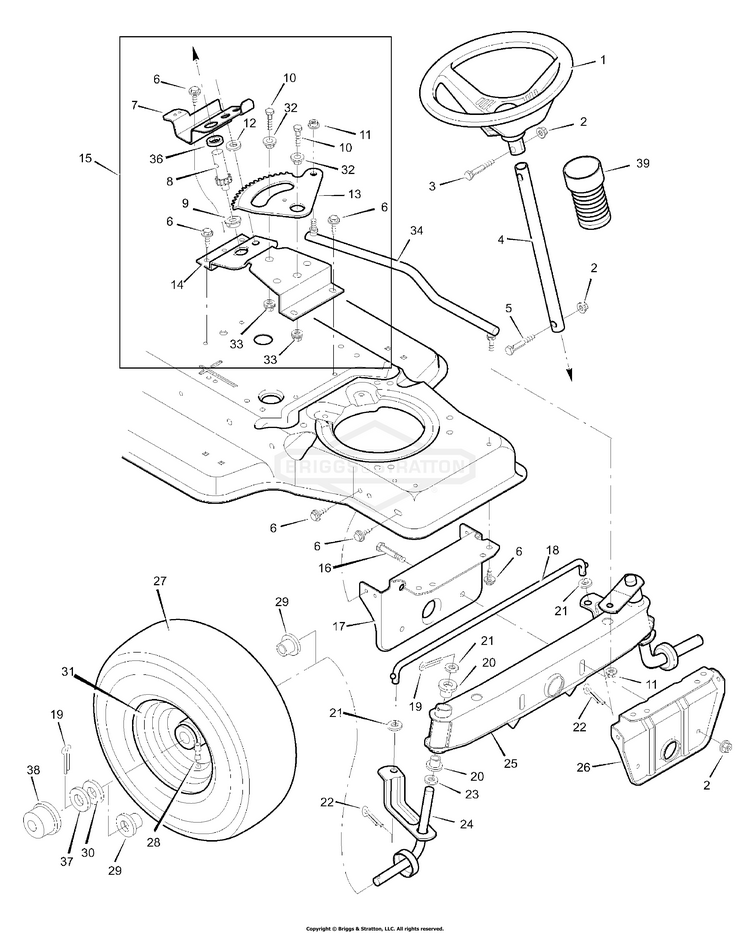

Steering

...
...
1
Wheel, Steering BS-92076
...
2
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
3
Bolt, Hex BS-001X66MA
...
4
Post, Steering BS-091860 Z
...
5
Bolt, Hex BS-001X74MA
...
6
Screw BS-26X249MA
...
7
Bracket, Sector BS-091716E700
...
8
Gear, Pinion BS-092715MA
...
9
Bearing BS-092716MA
...
10
BOLT BS-5025011X8FS
...
11
Locknut, Flange BS-015X87
...
12
Spacer BS-092564MA
...
13
Kit, Steering Gear BS-402075MA
...
14
Bracket, Sector BS-091708E700
...
15
Kit, Steering Gear BS-402075MA
...
16
Bolt, Hex BS-01X146MA
...
17
Support, Rear Axle BS-92529E700
...
18
Rod, Tie BS-090038 Z
...
19
Pin, Cotter BS-030X49MA
...
20
Bearing BS-092527MA
...
21
Washer BS-017X57MA
...
22
PIN, COTTER, 3/32X.75 BS-703312
...
23
WASHER.76-1.2 13G FL BS-17X113MA
...
24
Spindle Assembly, Right BS-091828E701MA
...
25
Spindle Assembly, Axle & Left BS-92518E700
...
26
Support, Front Axle BS-92528E700
...
27
Tire * BS-091912MA
...
--
Tube BS-407047MA
...
28
VALVE STM&CP,TR41 SE BS-024373MA
...
29
Bearing, Wheel BS-091334
...
30
Washer BS-17X195MA
...
31
Wheel & Tire Assembly BS-094578601
...
32
Bearing BS-092097MA
...
33
Locknut, Flange BS-15X113MA
...
34
Link, Drag BS-091749E701MA
...
36
Spacer, Pinion Gear BS-092280MA
...
37
Washer BS-17X192MA
...
38
HUB CAP (Optional) BS-094618MA
...
39
Bellows BS-091298
