38715x82A Murray - Lawn Tractor (1999)

Model: 38715x82A

Back To Assemblies

Save Part Not Listed?
product name

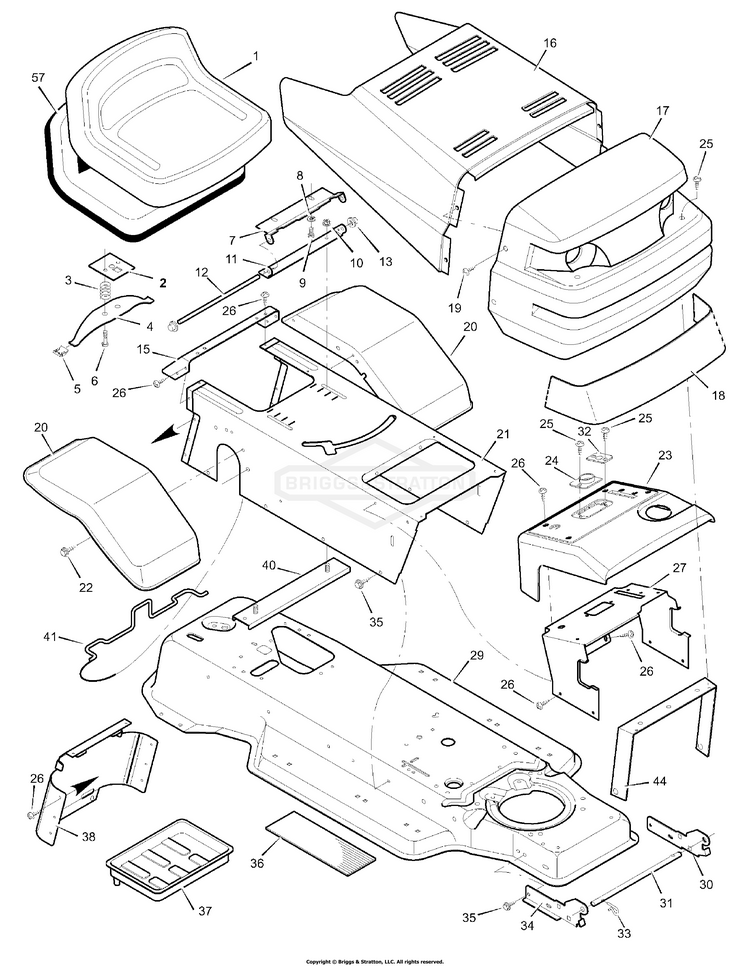

Chassis & Hood

...
...
1
Seat BS-092387MA
...
2
Plate Assembly, Switch BS-091963 Z
...
3
Spring, Compression BS-164X26MA
...
4
Spring, Seat BS-091964MA
...
5
Glide, Spring BS-091822MA
...
6
Bolt, Shoulder BS-009X38MA
...
7
Support, Seat BS-092334E700
...
8
Lockwasher BS-018X16MA
...
9
CAPSCREW,5/16-18X.625 BS-703822
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Bracket, Pivot BS-091729E701
...
12
Rod, Pivot BS-091730 Z
...
13
PUSHNUT, 3/8 BS-703948
...
15
Fender, Apron BS-091724E700
...
16
Hood BS-092333E541
...
17
Grille Assembly (includes Lens) BS-092350MA
...
18
Lens BS-092344MA
...
19
Screw BS-009X47MA
...
20
Fender BS-92328E541
...
21
Console Assembly BS-092727E700
...
22
SCREW.25-20 S-T BS-26X263MA
...
23
Dash Panel BS-92605E700
...
24
Bearing, Steering BS-092399
...
25
Screw BS-26X239MA
...
26
SCREW, Thread Forming BS-26X270MA
...
27
Support, Dash BS-92331E700
...
29
Frame Assembly BS-092815E700
...
30
Bracket, Left Grille BS-092347E701MA
...
31
Rod, Pivot BS-092332 Z
...
32
Bearing BS-092398
...
33
PIN, 3/32 X 1.6 BS-703300
...
34
Bracket, Right Grille BS-092346E700
...
35
Screw BS-26X249MA
...
36
Mat BS-094107
...
37
Tray, Battery BS-091895MA
...
38
Cap, Console BS-092443E700
...
39
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
40
Channel Assembly BS-091857E701
...
41
Clamp, Battery BS-092725 Z
...
44
Brace, Grille BS-92448 Z
...
57
Pan, Seat (with foam) BS-092357
...
--
Instruction Book & Parts List BS-F-99824
...
--
Decal, Left Hood BS-48X025
...
--
Decal, Right Hood BS-48X026
...
--
Decal, Warning BS-44X7325MA
