38711x66C Murray - Lawn Tractor (2000)

Model: 38711x66C

Back To Assemblies

Save Part Not Listed?
product name

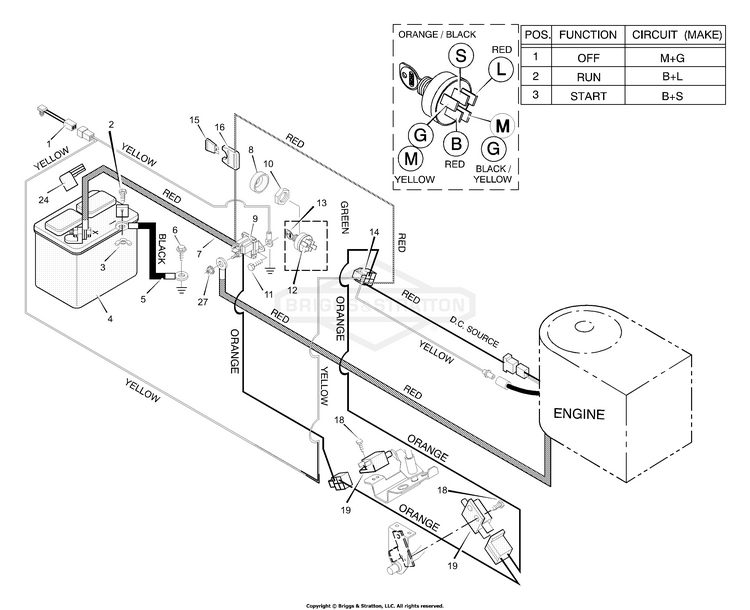

Electrical System

...
...
1
Switch, Seat Sensor BS-091031
...
2
BOLT, 1/4-20X0.625 BS-703841
...
3
Wingnut BS-014X79MA
...
4
Battery BS-091414
...
5
Cable, Battery Ground BS-024X30
...
6
Screw BS-26X249MA
...
7
Cable, Red Battery BS-024X29MA
...
8
CAP, Switch BS-847150
...
9
Solenoid BS-024285
...
10
SET, Washer/Nut BS-847144
...
11
Screw BS-26X214MA
...
12
Switch, Ignition BS-021064
...
13
Key, Ignition BS-020729
...
14
Harness, Chassis Wire BS-250X88
...
15
Fuse BS-054212
...
16
Holder, Fuse BS-407078MA
...
18
Screw BS-26X233MA
...
19
SWITCH, PLUNGER, N.O. BS-5021451SM
...
24
Cover, Terminal BS-054148MA
...
27
NUT, 1/4-20, NYLOCK BS-703232
