38711x66C Murray - Lawn Tractor (2000)

Model: 38711x66C

Back To Assemblies

Save Part Not Listed?
product name

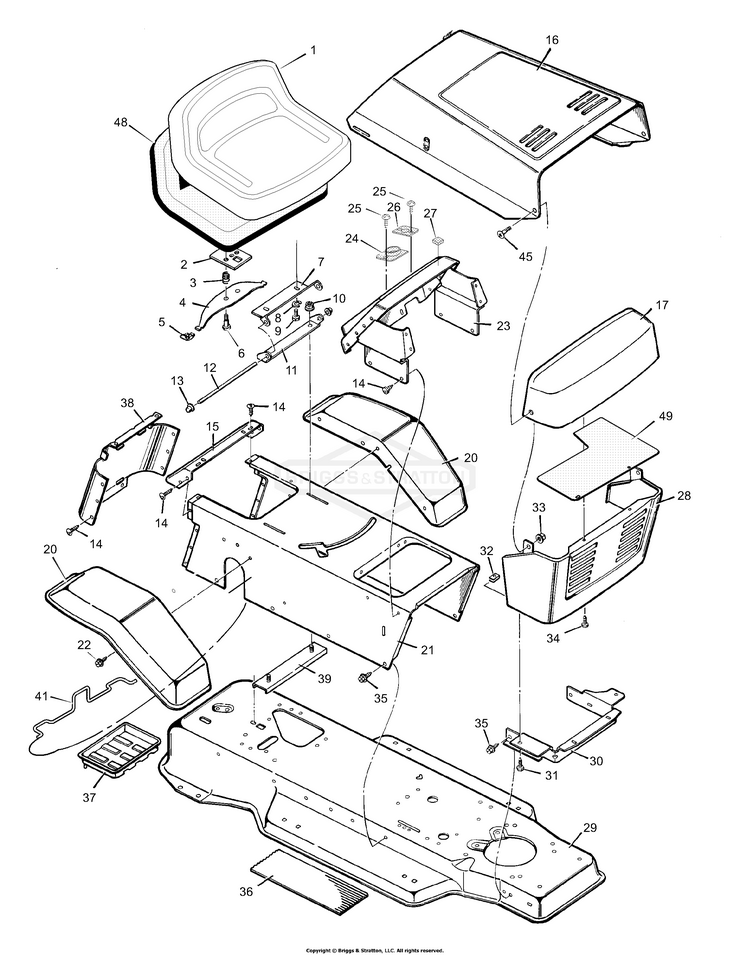

Chassis & Hood

...
...
1
Seat BS-092387MA
...
2
Plate Assembly, Switch BS-091963 Z
...
3
Spring, Compression BS-164X26MA
...
4
Spring, Seat BS-091964MA
...
5
Glide, Spring BS-091822MA
...
6
Bolt, Shoulder BS-009X38MA
...
7
Support, Seat BS-092334E700
...
8
Lockwasher BS-018X16MA
...
9
CAPSCREW,5/16-18X.625 BS-703822
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Bracket, Pivot BS-091729E701
...
12
Rod, Pivot BS-091730 Z
...
13
PUSHNUT, 3/8 BS-703948
...
14
SCREW, Thread Forming BS-26X270MA
...
15
Fender, Apron (Included with Ref. No. 21) BS-91724E245
...
16
Hood BS-091852E245
...
17
Grille, Upper BS-091736MA
...
20
Fender BS-91715E245
...
21
Console Assembly BS-092727E245
...
22
SCREW.25-20 S-T BS-26X263MA
...
23
Dash Panel BS-93174E245
...
24
Bearing, Steering BS-093135MA
...
25
Screw BS-26X238MA
...
26
Bearing BS-093155
...
27
Bumper BS-092444
...
28
Grill, Lower BS-091722F200
...
29
Frame Assembly BS-092815E245
...
30
Support, Grill BS-091723E700
...
31
Screw BS-26X252MA
...
32
U-Nut BS-028X57
...
33
NUT, CNTR LCK, 3/8-16 BS-703893
...
34
Fastener, Plastic BS-0193X1MA
...
35
Screw BS-26X249MA
...
36
Mat BS-094107
...
37
Tray, Battery BS-091895MA
...
38
Cap, Console (Included with Ref. No. 21) BS-092443E700
...
39
Channel Assembly BS-091857E701
...
41
Clamp, Battery BS-92725E700
...
45
BOLT, SHOULDER BS-702315
...
48
Pan, Seat (with foam) BS-092357
...
49
Shield, Heat BS-094334
...
--
Decal, Hood BS-44X7730
...
--
Decal, Top Console - Warning BS-44X6815MA
...
--
Instruction Book & Parts List BS-F-000753L
